Blast Furnace Gas Boiler for Chemical Processing – Tailored Energy Solutions
In high‑intensity chemical plants, recovering waste heat from blast furnace gas is a proven way to cut energy costs while meeting strict emissions targets. Our blast furnace gas boiler for chemical processing converts low‑calorific furnace gas into reliable steam or hot water, feeding downstream reactors, distillation columns, and heat‑exchanger networks. Engineered for continuous duty cycles, the unit delivers stable thermal output under variable gas composition, making it the backbone of sustainable process heating strategies.
Application Scenarios
Chemical manufacturers use our boiler in a range of environments:
- Steam generation for catalytic reactors where temperature stability is critical.
- Heat‑recovery loops for solvent recovery units, reducing the need for auxiliary fuel.
- Process water pre‑heating in large‑scale polymerisation plants, improving overall plant efficiency.
- Supplementary heating for batch‑type operations where furnace gas flow is intermittent.
Each installation is optimized for the specific gas composition and pressure profile of the host furnace, ensuring maximum heat‑transfer efficiency and minimal fouling.

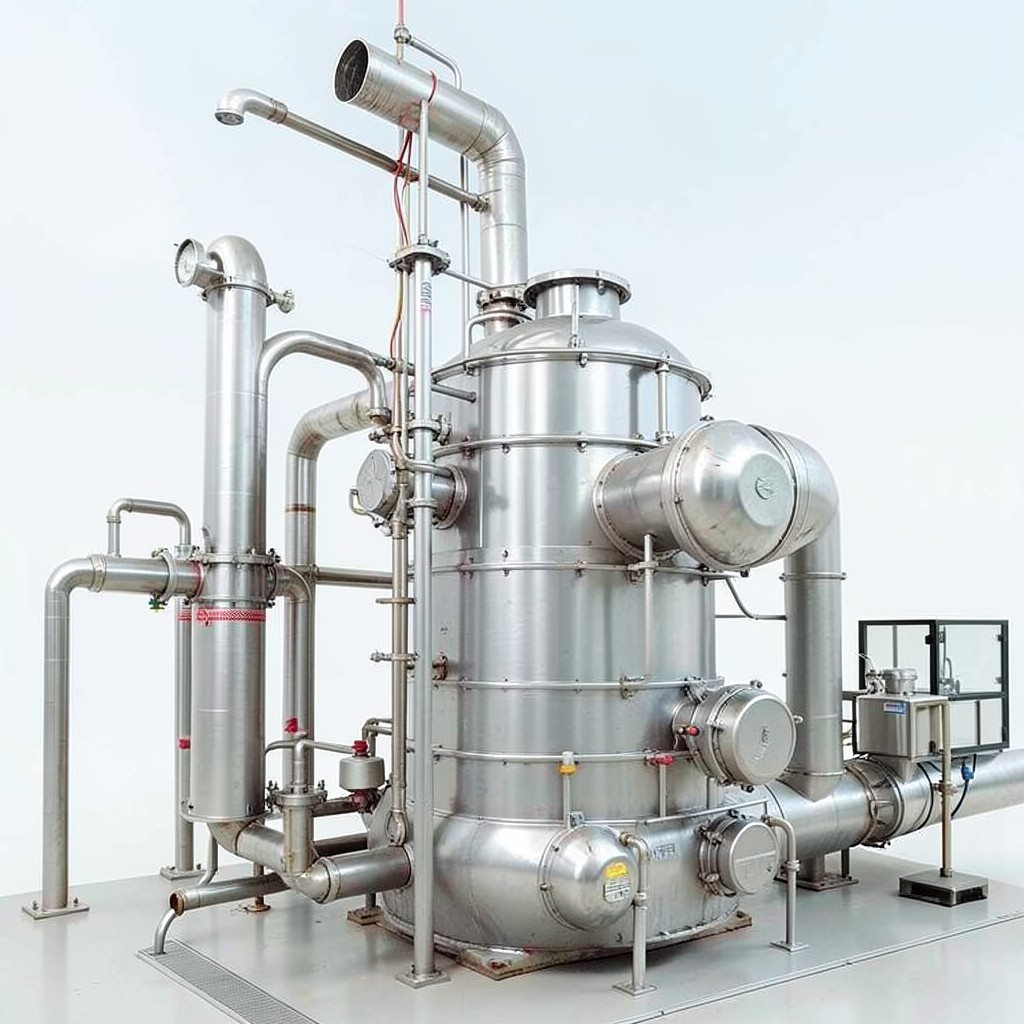

Product Overview
Our boiler series combines a compact fire‑tube design with advanced control algorithms that auto‑adjust fuel‑air ratios in real time. The system is built from corrosion‑resistant alloy steel, featuring a double‑wall heat‑exchanger, insulated piping, and an integrated low‑NOx combustion module. Modular construction enables onsite expansion or retro‑fit, while a PLC‑based HMI offers remote monitoring, alarm management, and data logging compliant with Industry 4.0 standards.
Technical Specifications (customizable per order)
| Parameter | Typical Range | Unit |
|---|---|---|
| Steam Generation Capacity | 5 – 150 | t/h |
| Design Pressure | 1.0 – 2.5 | MPa |
| Operating Temperature | 150 – 300 | °C |
| Fuel Gas Calorific Value | 5 – 7 | MJ/Nm³ |
| Thermal Efficiency | ≥ 85 | % (higher‑heating‑value) |
| Duty Cycle | Continuous 24/7 | – |
| Control System | PLC with HMI, Modbus/TCP, OPC-UA | – |
Competitive Advantages
- Fuel Flexibility: Optimized for low‑calorific blast furnace gas, yet capable of handling natural gas or syngas without hardware change.
- Low Emissions: Integrated low‑NOx burners and flue‑gas recirculation keep NOx below 30 mg/Nm³, supporting environmental compliance.
- Scalable Design: Modular sections can be added in 10 t/h increments, protecting capital investment as production expands.
- Robust Maintenance: Quick‑release fire‑tube bundles and standardized spare parts reduce downtime to under 8 hours per overhaul.
- Digital Integration: Real‑time performance dashboards feed directly into plant‑wide MES/EWS, enabling predictive maintenance.
FAQ
What is the minimum order quantity (MOQ) for a custom‑size boiler?
We accept projects starting at a 5 t/h steam capacity. Larger units are built to order, and the final MOQ is defined during the engineering quotation stage.
Can the boiler be adapted to fluctuating gas composition?
Yes. Our adaptive control module continuously measures calorific value and oxygen content, automatically retuning the fuel‑air mix to maintain efficiency across a ±20 % variation range.
What is the typical lead time from order to commissioning?
Standard models ship within 30 days after final design approval. Fully custom configurations require 45‑60 days, depending on material specifications and certification requirements.
What warranty and after‑sales support are provided?
All units carry a 24‑month parts‑only warranty, extendable to 60 months with a service contract. Our global service network offers 24/7 technical assistance and on‑site commissioning support.
