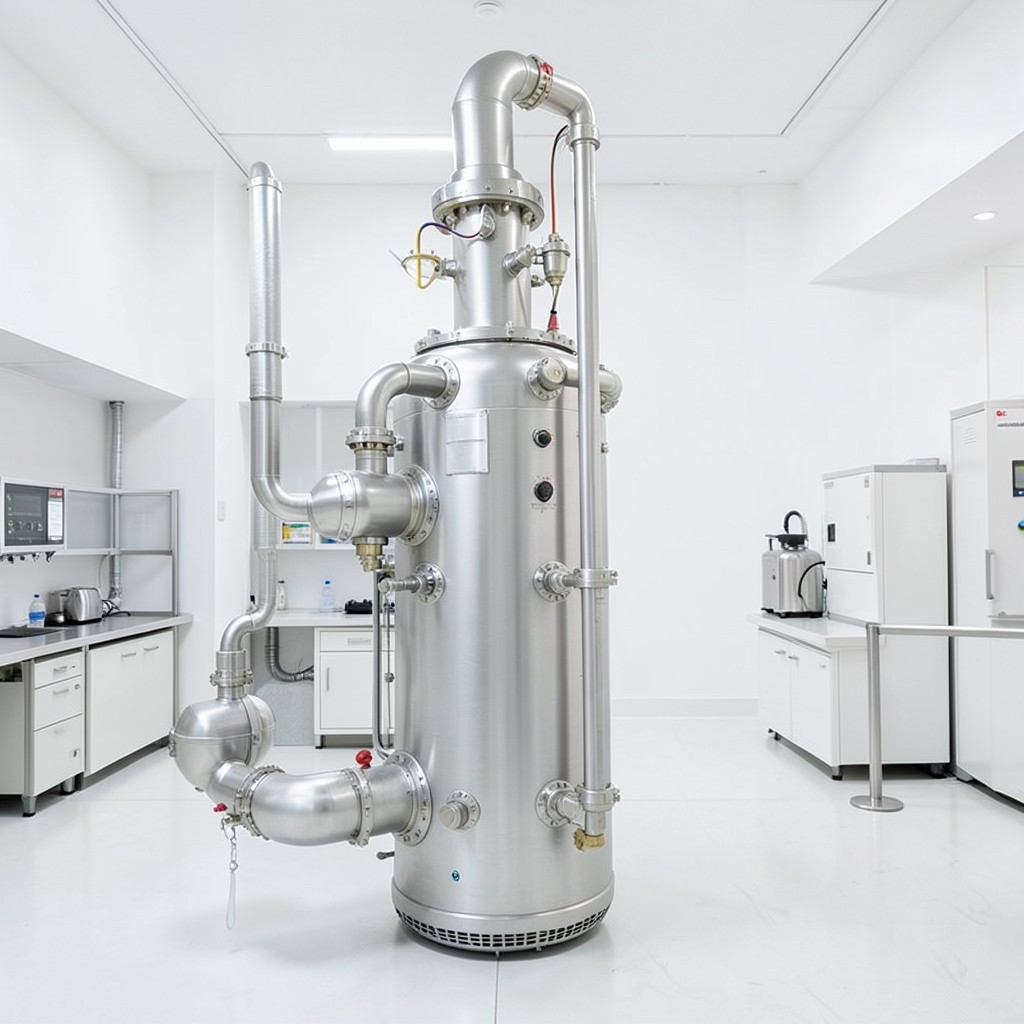

High Pressure Water Tube Pharmaceutical Boiler – Engineered for Sterile Steam Production
The high pressure water tube pharmaceutical boiler is a purpose‑built steam generator designed for continuous, sterile‑grade operations in drug‑manufacturing, biotech, and aseptic processing facilities. Leveraging a compact water‑tube architecture, the unit delivers rapid response to load changes while maintaining the tight temperature and pressure tolerances required by GMP‑compliant processes. Engineered with corrosion‑resistant alloys and a fully sealed pressure envelope, it eliminates contamination risk and supports 24/7 duty cycles demanded by large‑scale production lines.
Application Scenarios
Manufacturers of sterile injectables, lyophilized products, and biologics rely on consistent steam quality for equipment sterilization, reactor heating, and drying chambers. This boiler excels in:
- Steam sterilization of autoclaves and CIP (Clean‑In‑Place) systems.
- Heat‑transfer for batch reactors and fermenters where precise temperature ramps are critical.
- Lyophilization cycles that require rapid steam generation without pressure spikes.
- Utility plant integration where space constraints demand a high‑efficiency, low‑profile footprint.
Typical Specifications (customizable per order)
| Parameter | Range | Unit |
|---|---|---|
| Steam Pressure (rated) | 10 – 30 | bar |
| Design Capacity | 500 – 2500 | kg/h |
| Water‑tube Material | Inconel 600 / 625 | — |
| Fuel Options | Natural gas, LPG, Bio‑methane | — |
| Operating Temperature | 180 – 300 | °C |
| Control System | PLC‑based, Modbus/TCP, OPC-UA | — |
| Warranty | 24 months | — |
Competitive Advantages
- GMP‑Level Cleanliness: All water‑tube surfaces are electropolished and pass a 0.2 µm particulate filter test, ensuring no metal debris can migrate into the steam.
- Rapid Load Response: The high surface‑area tube bundle reaches set‑point within 3‑5 minutes, reducing start‑up energy consumption by up to 15 %.
- Modular Design: Units are delivered as factory‑tested modules; on‑site assembly can be completed within a single shift, minimizing installation downtime.
- Energy‑Efficiency: Integrated economizer and condensing heat‑recovery raise overall thermal efficiency above 92 %.
- Scalable Customisation: Boiler size, tube alloy, and control architecture can be tailored to match specific process loads, regulatory regions, or plant footprints.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑spec boiler?
Our standard catalog models start at a single unit, while fully engineered bespoke solutions typically require a MOQ of 2 units to justify tooling and validation costs.
Can the boiler be supplied with an alternative fuel?
Yes. The combustion chamber is designed for natural gas, LPG, or bio‑methane. Switching between fuels only requires a nozzle change and a brief re‑calibration of the control logic.
What is the typical lead time for a high pressure water tube pharmaceutical boiler?
Standard models ship within 15–30 days after purchase order confirmation. Fully customized configurations require 45–60 days, depending on material availability and engineering scope.
What warranty and after‑sales support are provided?
All units come with a 24‑month parts‑and‑labour warranty. Our technical service team offers 24/7 remote diagnostics and on‑site maintenance contracts in major industrial regions.
Ready to Upgrade Your Steam Infrastructure?
If you need a reliable, GMP‑compliant steam source that scales with your production growth, contact our engineering sales desk today. Submit your technical brief and we’ll return with a detailed quotation, lead‑time estimate, and a project‑execution plan tailored to your facility.
sales@yourcompany.com | +1‑800‑555‑0123
