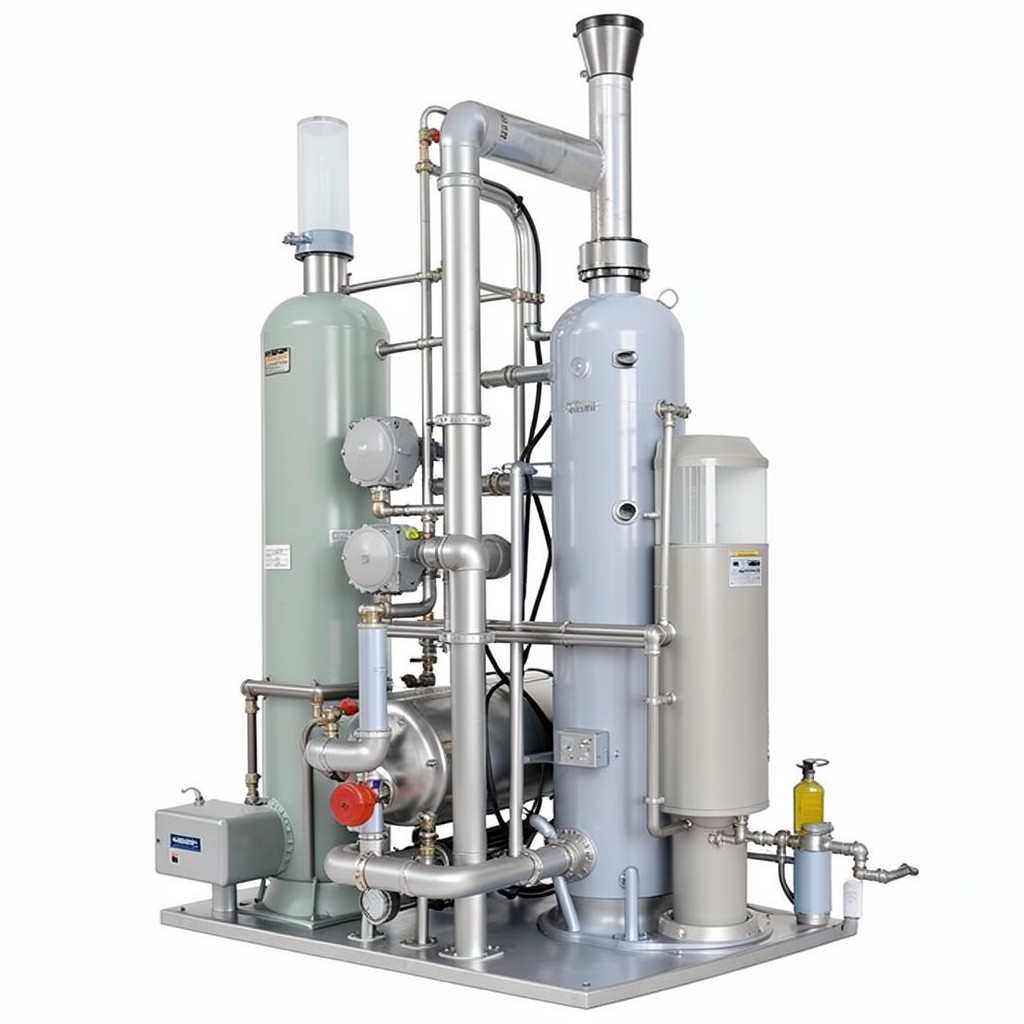

Nitric Acid Facility Chemical Process Steam Boiler – Engineered for Continuous, Corrosive‑Resistant Operations
Product Overview
The nitric acid facility chemical process steam boiler is a purpose‑built, high‑efficiency steam generator designed for the demanding environment of nitric‑acid production lines. Constructed from corrosion‑resistant alloys and equipped with precision‑control burners, the boiler delivers reliable steam at temperatures up to 250 °C and pressures up to 12 bar, supporting evaporation, reflux, and heat‑recovery stages that are critical to maintaining optimal reaction kinetics and product purity. Engineered for 24/7 duty cycles, it meets the strict uptime requirements of large‑scale chemical plants while complying with global safety and emissions standards.
Key Benefits & Technical Highlights
- Corrosion‑Resistant Construction: 316L stainless steel and duplex alloy cladding protect against the aggressive nitric‑acid vapors and condensate.
- Energy‑Saving Controls: Modulating PLC‑based burner management system reduces fuel consumption by up to 12 % compared with conventional on‑off control.
- Flexible Capacity: Modules ranging from 500 kg/h to 5 t/h allow scaling to match plant throughput.
- Rapid Start‑up: Pre‑heat and auto‑purge functions achieve full load within 15 minutes, minimizing process lag.
- Integrated Safety Suite: Dual‑level pressure relief, flame‑failure detection, and automatic low‑water shutdown ensure compliance with IEC 61511 and ASME Section III.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Optional Upgrade |
|---|---|---|
| Steam Output | 500 kg/h – 5 t/h | Up to 10 t/h with parallel module integration |
| Operating Pressure | 5 – 12 bar | Up to 20 bar (reinforced vessel) |
| Fuel Types | Natural gas, LPG | Oil, Dual‑fuel capability |
| Control System | PLC with HMI | Remote SCADA integration |
| Material of Construction | 316L SS, Duplex 2205 | Hastelloy® C‑276 for extreme acidity |
Application Scenarios
The steam boiler is most often deployed in the following stages of nitric‑acid production:
- Evaporator Pre‑heat: Provides the necessary steam to raise feed temperature, reducing energy consumption of downstream multiple‑effect evaporators.
- Reflux Condenser Support: Supplies low‑pressure steam for condensate reflux, stabilising the concentration gradient and preventing salt‑crystal formation.
- Heat‑Recovery Integration: Coupled with waste‑heat boilers to capture exhaust from the nitric‑acid oxidation furnace, improving overall plant thermal efficiency.
- Emergency Back‑up: Modular design enables rapid installation as a standby unit, ensuring uninterrupted steam supply during planned maintenance.
Industry Certifications & Safety
All units are manufactured in accordance with ASME Section III, Division 1 pressure‑vessel codes and undergo third‑party inspection for compliance with ISO 9001 quality management. The boiler’s control electronics meet IEC 61508 SIL 2 functional safety requirements, and the complete system is certified for ATEX Zone 2 environments, addressing explosion‑risk concerns prevalent in nitric‑acid facilities.
FAQ
What is the minimum order quantity (MOQ) for a custom‑spec boiler?
We can supply a single unit for pilot‑plant projects; larger plants typically order 2–5 modules to achieve redundancy. MOQ is flexible and determined during the engineering consultation.
Can the boiler be adapted for alternative fuels?
Yes. The base design supports natural gas or LPG. Oil burners or dual‑fuel kits can be added at the engineering stage without affecting the vessel certification.
What is the typical lead time from order to delivery?
Standard models ship within 15–30 days after receipt of the purchase order and final design sign‑off. Fully customized configurations require 45–60 days, depending on material availability.
Is there a warranty and after‑sales support?
All boilers come with a 24‑month parts‑and‑labour warranty. Our technical team offers 24/7 remote diagnostics and on‑site commissioning assistance worldwide.
Get Your Tailored Solution Today
Ready to boost reliability and energy efficiency in your nitric‑acid plant? Contact our engineering sales office to discuss capacity, material options, and integration details. Email us now or call +1‑800‑555‑0199 for a no‑obligation quote.
