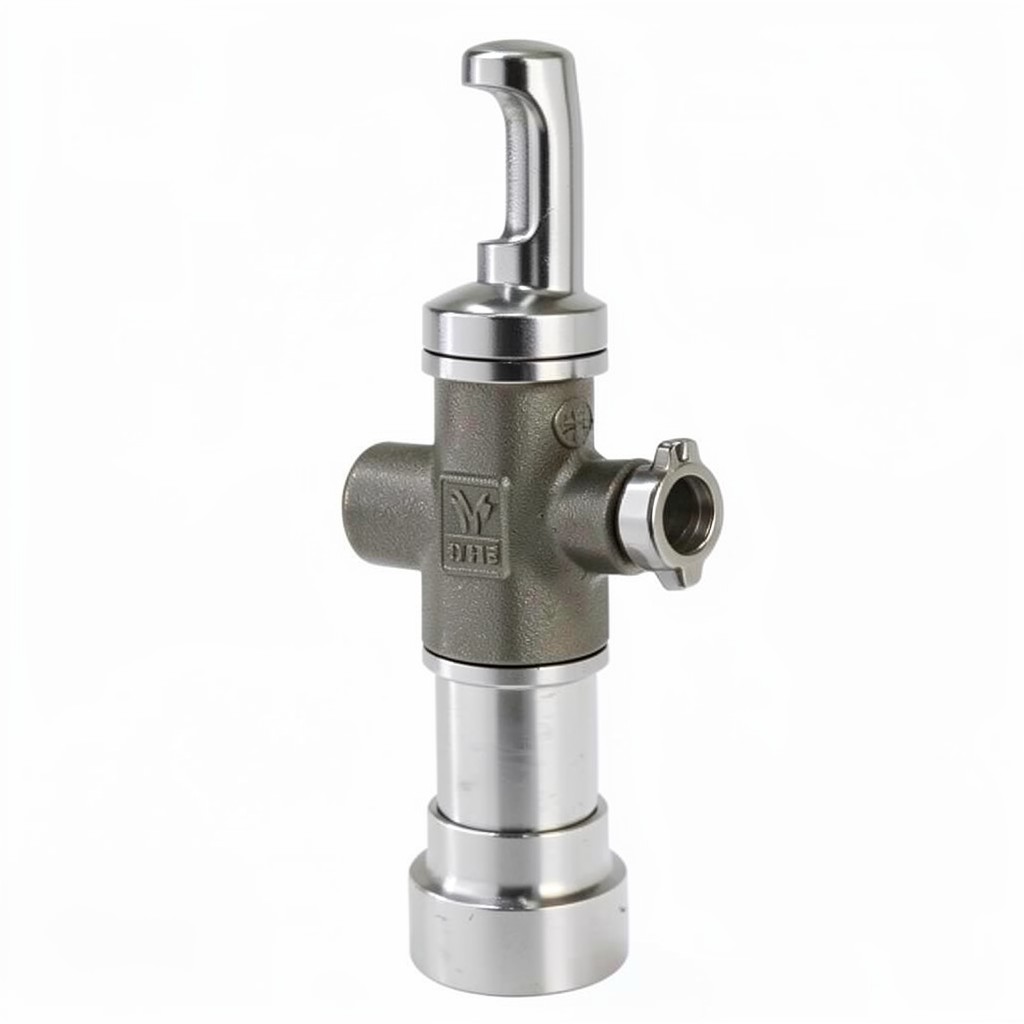

Safety Relief Valve for Pure Chemical Steam Lines – Engineered for Maximum Protection
When handling high‑purity chemical steam, any pressure excursion can jeopardize plant safety, product integrity, and regulatory compliance. Our safety relief valve for pure chemical steam lines provides instant, reliable venting while preserving the chemical purity of the steam. Designed for continuous‑service plants, it integrates seamless with existing piping, offers low‑maintenance operation, and meets the strictest international standards for hazardous‑material handling.
How the Valve Protects Your Process
The valve employs a spring‑loaded disc that opens automatically when steam pressure exceeds the preset set‑point. A corrosion‑resistant, chemically inert seat ensures a tight seal during normal operation, preventing any contamination of the steam stream. The valve’s vent line routes excess steam to a dedicated flare or condensate recovery system, eliminating the risk of over‑pressurization while maintaining steam purity. Adjustable set‑points and interchangeable spring rates allow precise tuning to the specific pressure profile of each installation.
Key Benefits & Features
- Pure‑Chemical Compatibility: Body and seat made from 316L stainless steel or Hastelloy® C‑276 for resistance to aggressive steam constituents.
- Zero‑Leak Design: Double‑seated disc and metal‑to‑metal sealing eliminate leakage paths, protecting product quality.
- Adjustable Set‑Point: 0.5–5 bar differential pressure range, fine‑tuned via interchangeable springs.
- Compact Footprint: Low‑profile design fits tight rack‑mounted installations without sacrificing flow capacity.
- Maintenance‑Free Operation: Self‑lubricating guide pins and corrosion‑resistant springs reduce service intervals.
- Fast Response: Opens fully within 0.15 seconds of set‑point breach, ensuring rapid pressure relief.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Optional |
|---|---|---|
| Connection Size (DN) | 15 – 200 mm | Custom flange / welded |
| Set‑Point Range | 0.5 – 5 bar (gauge) | 0.1 – 10 bar (custom spring) |
| Material Construction | 316L SS, Hastelloy C‑276 | Inconel 625, Monel |
| Operating Temperature | 150 °C – 350 °C | Up to 500 °C (special alloy) |
| Flow Capacity (Cv) | 0.8 – 30 m³/h | Scaled on demand |
Application Scenarios
Our valve is the preferred safety device for a range of pure‑chemical steam operations:
- Pharmaceutical steam sterilization: Guarantees sterility without introducing metal ions or corrosion products.
- Fine‑chemical synthesis: Protects reactors from pressure spikes while maintaining reagent purity.
- Semiconductor wafer cleaning: Provides clean‑steam venting that meets Class 1 cleanroom requirements.
- High‑purity petrochemical distillation: Handles corrosive sulfur‑containing steam with extended service life.
Industry Certifications & Safety
All units are manufactured in ISO 9001‑certified facilities and are tested to comply with ASME Section III, API 520/521, and EN 13445 pressure equipment directives. Documentation includes CE marking, PED conformity, and a full material traceability report for each batch. Our design validation follows IEC 61508 functional safety standards, ensuring the valve’s reliability in Safety‑Integrated Systems (SIL 2).
FAQ
What is the minimum order quantity (MOQ)?
We accept orders as low as a single unit for prototyping, but standard production runs start at 20 pieces to optimize lead‑time and cost.
Can the set‑point be customized?
Yes. The spring mechanism can be swapped to achieve set‑points from 0.1 bar up to 10 bar, and we also offer electronic pressure monitoring kits for remote adjustment.
What is the typical lead time?
Standard configurations ship within 15‑25 working days after order confirmation. Custom material or size requests require 30‑45 days, depending on complexity.
Is there a warranty?
All safety relief valves carry a 24‑month limited warranty covering material defects and manufacturing workmanship, backed by on‑site technical support.
