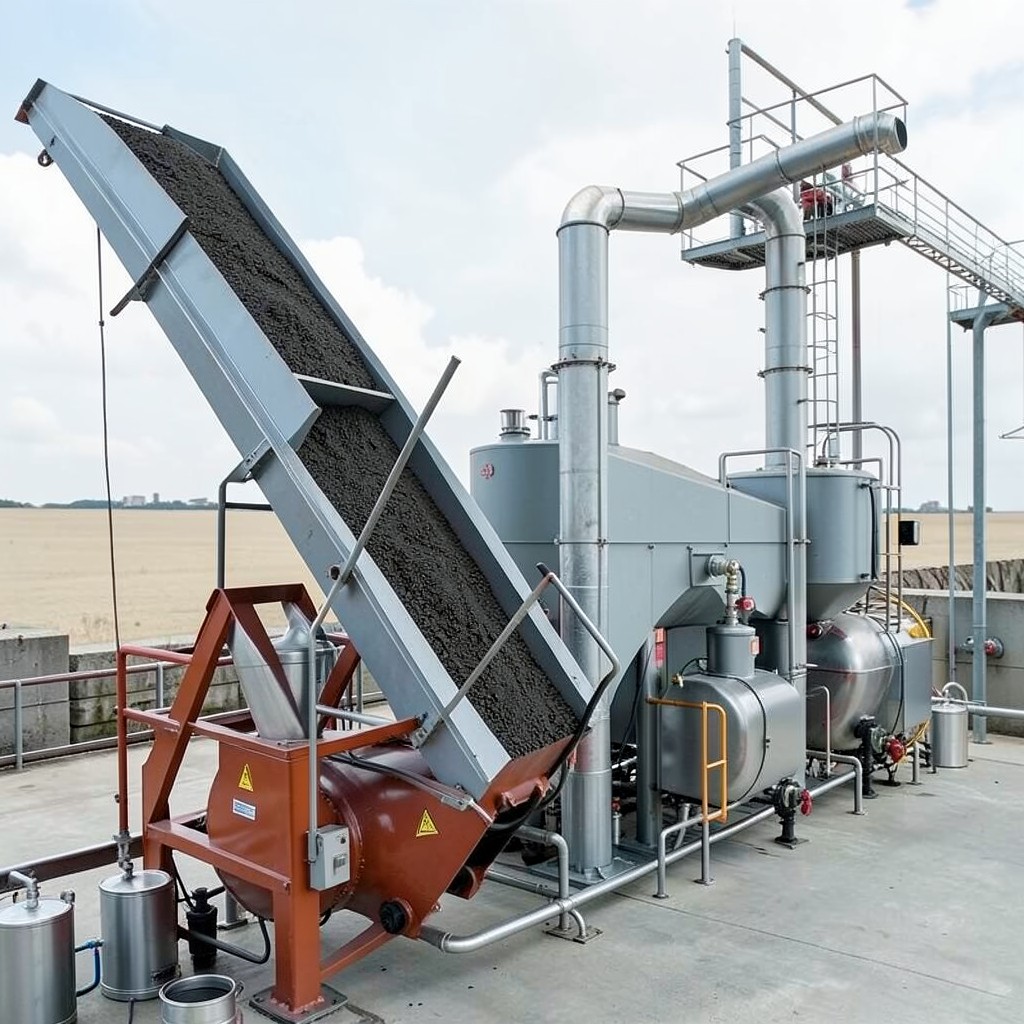

Bottom Ash Conveyor for Industrial Coal Boiler
Application Scenarios
Power‑generation plants, cement factories, and large‑scale waste‑to‑energy facilities rely on robust material‑handling systems to keep their coal‑fired boilers running efficiently. The bottom ash conveyor for industrial coal boiler is engineered to transport heavy, abrasive ash from the boiler’s ash hopper to disposal or recycling stations without interrupting the combustion cycle. Whether the plant operates 24/7 in a base‑load configuration or runs on a seasonal peak schedule, this conveyor delivers continuous, low‑maintenance performance in harsh, high‑temperature environments.
Typical installations include:
- Direct‑feed lines from pulverized‑coal boilers to ash silos.
- Integration with pneumatic or hydraulic ash handling networks.
- Retrofit projects where existing belt conveyors have exceeded service life.
Product Overview
Our conveyor system combines a high‑strength steel frame, wear‑resistant rubber‑coated belts, and modular drive units to meet the demanding conditions of coal‑fired boilers. The design allows for quick on‑site assembly, adjustable belt width (800 mm–1500 mm), and capacity scaling up to 350 t/h. All components are pre‑lubricated, sealed against dust ingress, and equipped with overload protection that automatically shuts down the drive in case of jam or excessive load.
The conveyor can be supplied as a turnkey package—including foundations, electrical cabinets, and remote monitoring interfaces—or as a modular kit for OEM integration. Standard models comply with IEC 60204‑1 for electrical safety and meet ISO 9001 quality management requirements.
Technical Specifications (customizable per order)
| Parameter | Typical Range | Unit |
|---|---|---|
| Belt Width | 800 – 1500 | mm |
| Maximum Load Capacity | 150 – 350 | t/h |
| Belt Speed | 0.5 – 2.5 | m/s |
| Operating Temperature | -20 – 120 | °C |
| Motor Power | 7.5 – 45 | kW |
| Drive Type | Gearbox or VFD | – |
| Warranty | 24 months | – |
Competitive Advantages
• Durability: Hardened steel frames and abrasion‑resistant belts extend service life beyond 10 years in continuous operation.
• Energy Efficiency: Optimized gear ratios and optional VFD control reduce motor consumption by up to 15 % compared with conventional conveyors.
• Flexibility: Modular sections enable length adjustments from 5 m to 30 m without special tools, ideal for both new builds and retrofits.
• Safety Integration: Built‑in emergency stop, speed monitoring, and overload sensors meet global plant safety standards.
• Rapid Installation: Pre‑aligned pivot points and plug‑and‑play electrical cabinets cut on‑site commissioning time by half.
FAQ
What is the minimum order quantity (MOQ) for a custom‑size conveyor?
Our standard MOQ is one complete conveyor line, which can be configured to any length, width, or capacity you require. We also offer a modular kit for projects that need phased expansion.
Can the system be integrated with existing ash handling equipment?
Yes. The conveyor features universal coupling interfaces and adjustable mounting brackets, allowing seamless connection to legacy silos, crushers, or pneumatic lifts.
What is the typical lead time?
Standard models are shipped within 15‑30 days after order confirmation. Custom configurations requiring special belt profiles or control panels may require 30‑45 days, depending on complexity.
Is there a warranty or service agreement?
All units come with a 24‑month warranty covering materials and workmanship. Extended service contracts and on‑site preventive maintenance programs are available upon request.
Ready to boost your plant’s ash handling efficiency? Contact our engineering team today for a no‑obligation quote and detailed design support.
