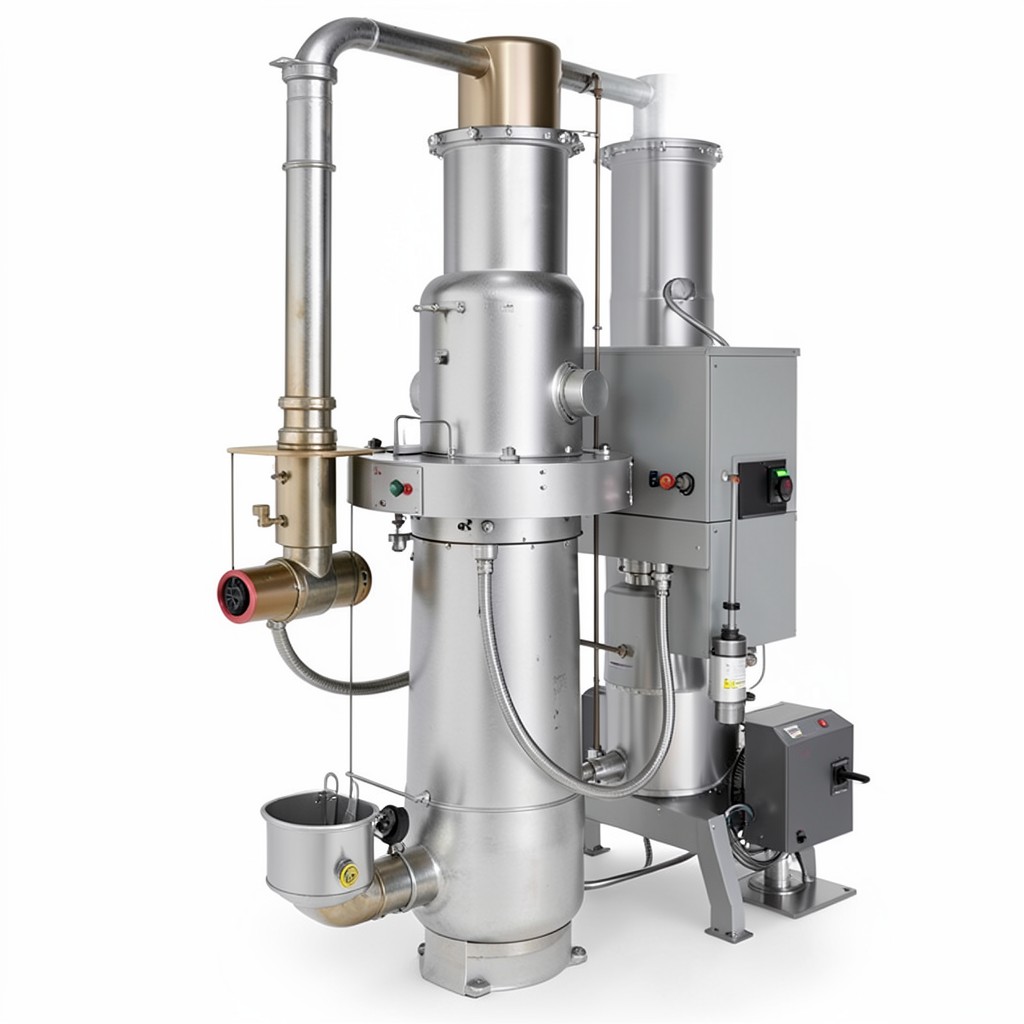

Continuous Blowdown Flash Tank for Coal Boiler – Reliable Scale Management
In coal‑fired power generation, maintaining boiler water chemistry is critical to efficiency and equipment lifespan. Our continuous blowdown flash tank for coal boiler is engineered to separate dissolved solids from boiler feedwater in real‑time, delivering a steady stream of clean water back to the system while safely disposing of concentrated blowdown. Designed for high‑pressure, high‑temperature environments, this flash tank integrates seamlessly with existing blowdown loops, reducing scaling, corrosion, and unscheduled outages.
How It Works – Flash Separation in Action
The tank utilizes rapid pressure reduction (flash) to precipitate dissolved salts as solid particles. As high‑pressure boiler water enters the vessel, it expands through a throttling valve, dropping the temperature below the solubility point of the salts. The resulting supersaturation forces the contaminants to crystallize, where they settle in a dedicated collection zone. Clean water, now below the scaling threshold, passes through a high‑capacity venturi and returns to the feedwater line. Continuous operation is achieved via an automated level‑control system that balances inlet flow with discharge, eliminating the need for manual intervention.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Optional Options |
|---|---|---|
| Design Pressure | 10–30 bar | Up to 45 bar (reinforced shell) |
| Operating Temperature | 150–250 °C | Extended to 300 °C (special alloy) |
| Capacity | 500–5000 L | Custom volumes up to 10 000 L |
| Material of Construction | Carbon steel (SA‑516) | Stainless 304/316, Duplex, or Alloy 625 |
| Control System | Level sensor + pneumatic valve | PLC‑integrated HMI, remote monitoring |
industrial circulating fluidized bed coal boiler manufacturer
Key Benefits & Features
- Continuous operation eliminates downtime associated with batch‑type blowdown systems.
- Reduces scaling rate by up to 70 % compared with direct blowdown, extending boiler tube life.
- Compact footprint – engineered for retrofit in confined plant spaces.
- Corrosion‑resistant internal linings available for high‑alkalinity feedwater.
- Integrated safety interlocks meet IEC 61511 functional safety standards.
- Modular design allows easy expansion or replacement of individual sections.
Application Scenarios
The flash tank is suitable for a range of coal‑fired installations, from utility‑scale power stations to industrial cogeneration plants. Typical use cases include:
- Supercritical and ultra‑supercritical boilers: Handles pressures above 25 bar while maintaining precise blowdown control.
- Low‑grade coal plants: Mitigates high ash and sulfate content, protecting downstream water‑treatment equipment.
- Hybrid fuel facilities: Provides a consistent blowdown quality when switching between coal and alternative fuels.
- Retrofit projects: Replaces aging batch flash tanks with a continuous solution, improving plant availability.
FAQ
What is a continuous blowdown flash tank for coal boiler and how does it differ from a standard flash tank?
A standard flash tank typically operates in batch mode, requiring periodic shutdowns to discharge concentrated blowdown. The continuous version incorporates level‑controlled inlet and outlet valves, allowing a steady flow of water and solids without interrupting boiler operation. This results in lower thermal shock, reduced labor, and higher overall plant efficiency.
What is the minimum order quantity (MOQ) and can the design be customized?
Our standard catalog starts at a 500 L capacity unit, but we accept custom orders as low as a single 300 L tank for pilot projects. Materials, pressure rating, control interfaces, and accessories can be tailored to match the specific boiler parameters and site regulations.
What is the typical lead time and delivery arrangement?
Standard models are shipped within 15‑30 days after order confirmation. For customized specifications, the lead time ranges from 30‑45 days, depending on material availability and engineering approvals. We offer crate‑packed, pre‑tested units delivered to the plant site or to a local distributor.
What warranty and after‑sale support are provided?
All units come with a 12‑month limited warranty covering manufacturing defects and material failures. Our technical team provides installation guidance, on‑site commissioning, and a 24/7 hotline for troubleshooting during the warranty period.
Ready to Optimize Your Boiler Water System?
Contact our engineering sales office today to discuss specifications, request a quotation, or arrange a virtual plant tour. Let us help you achieve higher efficiency and lower maintenance costs with a proven continuous blowdown solution.
