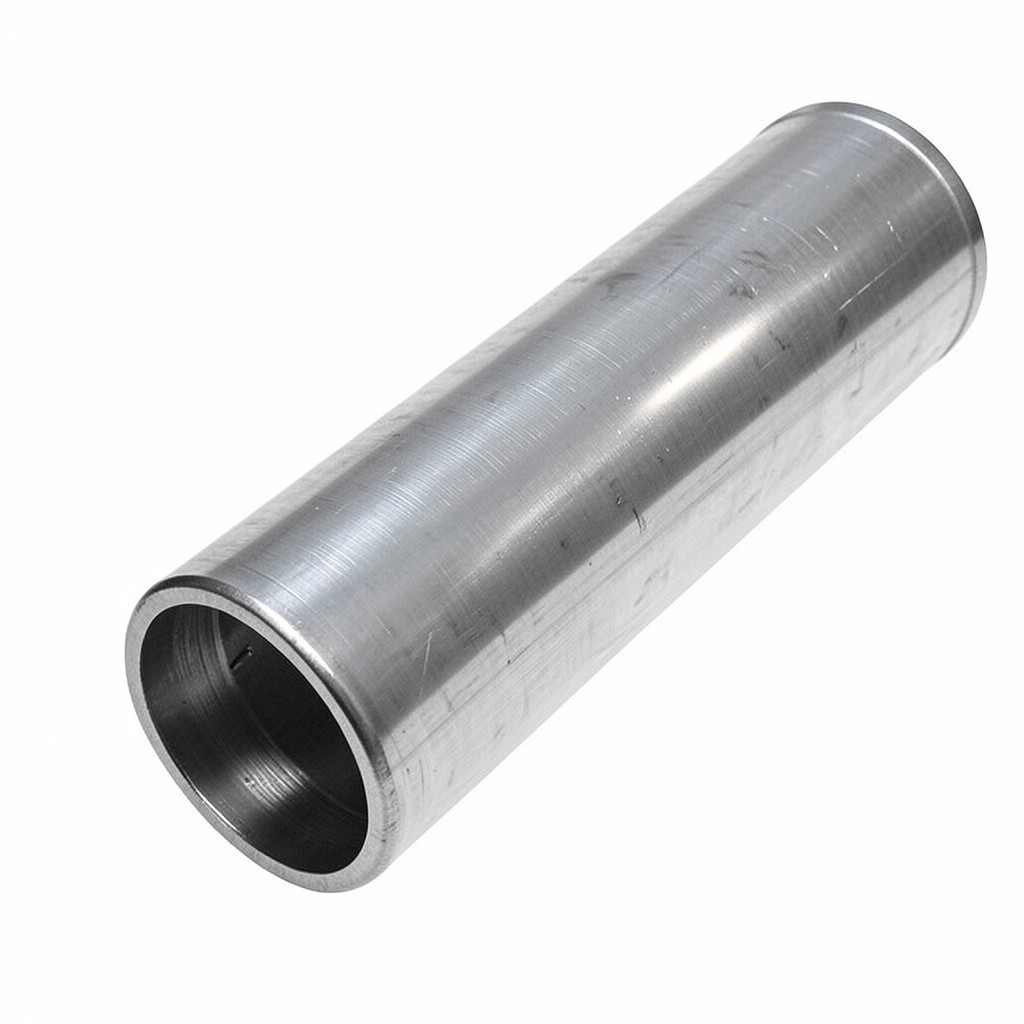

Seamless Carbon Steel Boiler Pipes for Coal Boiler
Our seamless carbon steel boiler pipes are engineered specifically for coal‑fired boiler systems, delivering reliable pressure containment and superior corrosion resistance where it matters most. Designed to meet the rigorous demands of power generation, these pipes provide a continuous, joint‑free solution that minimizes leakage risk and simplifies installation, helping you keep plant uptime at its peak.
Key Benefits & Features
- Joint‑free integrity: Seamless construction eliminates weld seams, reducing potential weak points and extending service life.
- High‑temperature tolerance: Optimized carbon‑steel chemistry withstands the typical 300‑450 °C range of coal boiler environments.
- Excellent pressure rating: Certified for design pressures up to 25 MPa, suitable for both low‑ and high‑pressure loops.
- Corrosion‑resistant coating options: Available with internal quartz or ceramic linings to further protect against slag and acidic condensate.
- Customizable dimensions: Outside diameters from 25 mm to 400 mm and lengths up to 12 m, cut to size on request.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Units |
|---|---|---|
| Outside Diameter (OD) | 25 – 400 | mm |
| Wall Thickness | 2 – 30 | mm |
| Design Pressure | 10 – 25 | MPa |
| Operating Temperature | 150 – 450 | °C |
| Material Grade | ASTM A53, API 5L, EN 10216-2 | — |
All dimensions are verified by certified dimensional inspection. Custom tolerances and additional alloying elements are available upon request.
boiler header pipe for high pressure coal system
Application Scenarios
These pipes are the backbone of several critical sections within a coal‑fired boiler plant:
- Primary and secondary steam generation loops where temperature stability is essential.
- Feed‑water distribution networks that require high pressure tolerance and low leakage risk.
- Flue‑gas side condensate return lines, benefiting from carbon‑steel’s resistance to acidic gases.
- Heat‑exchanger manifolds where seamless flow reduces turbulence and improves heat transfer efficiency.
By choosing a pipe that is purpose‑built for coal boiler conditions, operators see measurable improvements in thermal efficiency and a reduction in unplanned maintenance.
Industry Certifications & Safety
Our seamless carbon steel boiler pipes comply with the most widely recognized standards in the power‑generation sector:
- ISO 9001:2015 – Quality Management System.
- ISO 14001 – Environmental Management, ensuring low‑impact manufacturing.
- ASME Section I & III – Boiler and Pressure Vessel Code compatibility.
- API 5L – Line pipe specification for oil and gas, often cross‑referenced for high‑pressure service.
Third‑party inspection reports (NDT, hydro‑static testing) are provided with every shipment, giving procurement teams full traceability and confidence during acceptance testing.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for custom‑cut pipes?
Our standard MOQ is 500 kg per size, but we can accommodate smaller batches for prototype or pilot projects with a modest setup surcharge.
Are your seamless carbon steel boiler pipes for coal boiler suitable for high‑temperature operation?
Yes. The carbon‑steel grade is selected to retain strength and ductility up to 450 °C, and optional internal linings further extend temperature capability while protecting against slag‑induced erosion.
What is the typical lead time after order confirmation?
Standard production runs ship within 15‑30 days. For special dimensions or additional coating processes, lead time extends to 30‑45 days, depending on order volume.
Do you provide warranty or post‑sale technical support?
All pipes carry a 12‑month warranty against material defects. Our engineering team is available for installation guidance, performance verification, and after‑sales troubleshooting at no extra charge.
