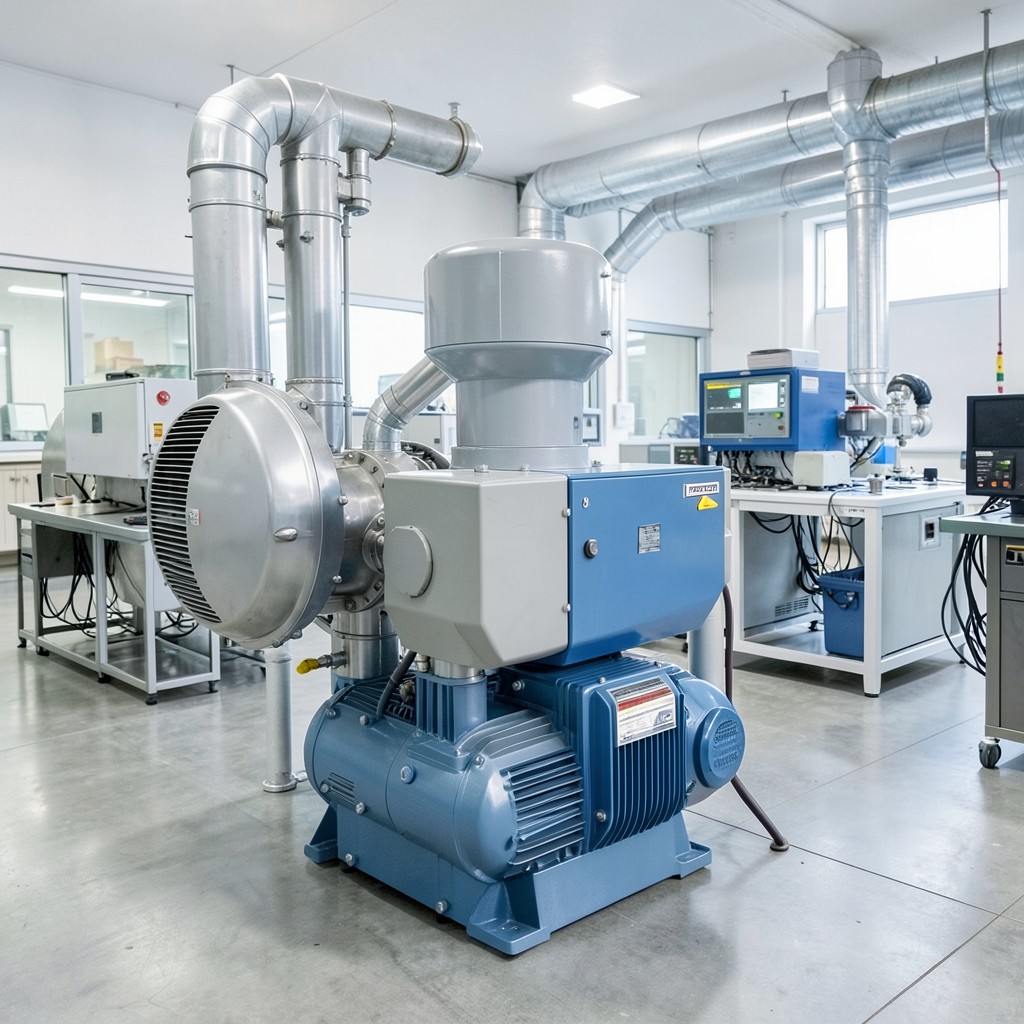

In coal‑fired power plants the boiler’s forced‑draft fans are the heart of combustion control. Our variable frequency drive vfd for coal boiler fans delivers exact speed regulation, energy savings, and robust protection against the harsh, high‑temperature environment typical of boiler rooms. Engineered for continuous duty, the drive integrates seamlessly with existing PLCs and SCADA systems, giving plant operators real‑time control over airflow, pressure, and fuel efficiency.

Application Scenarios

The VFD is optimized for three core applications within coal‑fired facilities:

• Primary forced‑draft fans – 30 kW to 500 kW motor ratings, required for steady‑state and rapid load changes.
• Secondary auxiliary fans – Low‑speed, high‑torque operation for flue‑gas recirculation and ash handling.
• Emergency shutdown and start‑up sequencing – Integrated soft‑start/soft‑stop functions to protect mechanical gearboxes and reduce thermal shock.

All models meet IEC 61800‑5‑1 for adjustable speed drives and are certified for operation in Class I, Division 2 hazardous locations, ensuring compliance with ATEX and IECEx where required.

Product Overview

Our VFD platform is built on a modular architecture that can be customized for voltage (380‑690 V), frequency range (0‑120 Hz), and communication protocols (Modbus RTU, Profibus DP, Ethernet/IP). The control algorithm incorporates vector control with sensor‑less rotor position detection, eliminating the need for external encoders while maintaining torque accuracy within ±2 % of rated value.

Key design features include an IP66‑rated enclosure, copper busbars for low loss, and an integrated EMC filter to meet FCC Part 15 and EN 61000‑6‑3 standards. The drive’s firmware is upgradeable via USB or Ethernet, allowing future enhancements without hardware replacement.

Technical Specifications (customizable per order)

forced draft fan for coal fired steam boiler

All specifications are adjustable to meet plant‑specific load curves, duty cycles, and ambient conditions.

Competitive Advantages

• Energy Efficiency: Up to 15 % reduction in motor input power compared with fixed‑speed drives, verified by independent testing.
• Extended Motor Life: Soft‑start/stop and harmonic mitigation lower mechanical stress and thermal cycling.
• Rapid Response: 0‑120 Hz ramp rates as fast as 5 Hz/s, enabling precise load‑following for fluctuating steam demand.
• Safety First: Built‑in over‑current, over‑voltage, ground‑fault, and thermal overload protection; conforms to IEC 61800‑5‑2 functional safety standards.
• Global Support: After‑sales service network in North America, Europe, and Asia; spare parts stocked for 3‑year lead time reduction.

FAQ

What is the minimum order quantity (MOQ) for a customized VFD?

Our standard catalog models are available with an MOQ of one unit. For bespoke voltage or communication configurations, the MOQ is typically 10 units, allowing us to optimise tooling and inventory.

Can the drive be integrated with existing SCADA systems?

Yes. The variable frequency drive vfd for coal boiler fans supports Modbus RTU, Profibus DP, and optional Ethernet/IP, making it compatible with most major SCADA platforms out‑of‑the‑box.

What is the typical lead time from order to shipment?

Standard configurations ship within 15‑30 days after order confirmation. Customised solutions, including special enclosure ratings or firmware features, require 30‑45 days depending on complexity.

What warranty and after‑sales support are provided?

All drives carry a 24‑month limited warranty covering parts and labor. Extended warranty packages up to 60 months are available, along with on‑site commissioning assistance and a 24 / 7 technical hotline.
