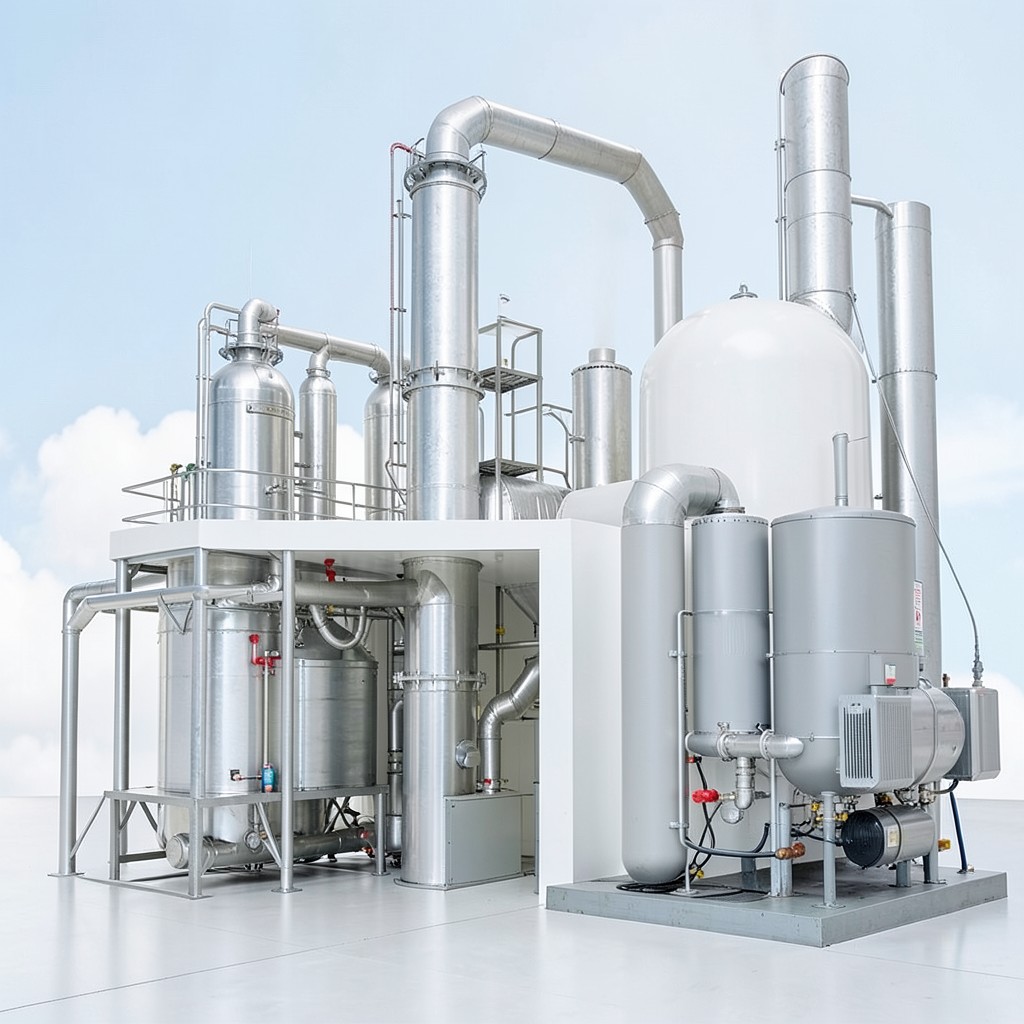

Biomass Gasification and Hydrogen Co‑Firing Boiler – Advanced Renewable Power Solution
How It Works
Our biomass gasification and hydrogen co firing boiler combines two proven technologies into a single, compact unit. Biomass feedstock (wood chips, agricultural residues, or municipal waste) is first gasified at high temperature in a low‑oxygen environment, producing a clean synthesis gas (syngas). Simultaneously, a controlled stream of hydrogen—sourced from on‑site electrolysis or external supply—is blended with the syngas before combustion. The mixed fuel is ignited in a high‑efficiency furnace, generating steam for turbines, process heating, or district heating networks. This dual‑fuel approach maximizes thermal output while reducing carbon intensity and fuel cost volatility.
Key Benefits
- Carbon‑Neutral Operation: Co‑firing hydrogen cuts CO₂ emissions by up to 70% compared with biomass‑only firing.
- Fuel Flexibility: Accepts a wide range of biomass moisture contents (10‑25%) and can operate with 0‑30% hydrogen by energy.
- High Thermal Efficiency: Integrated heat recovery delivers net efficiencies of 85‑90% (LHV).
- Rapid Load Response: Adjustable hydrogen feed enables quick ramp‑up/down, ideal for grid‑balancing services.
- Reduced Ash Handling: Gasification transforms most solid residues into gaseous by‑products, lowering ash volume by 60%.
- Compliance Ready: Designed to meet EU EcoDesign, ISO 50001 energy management, and local emission limits.
Typical Specifications (customizable per order)
| Parameter | Range | Units |
|---|---|---|
| Steam Generation Capacity | 1 – 25 | MW |
| Design Pressure | 10 – 30 | bar |
| Operating Temperature | 450 – 550 | °C |
| Net Thermal Efficiency | 85 – 90 | % (LHV) |
| Hydrogen Share (by energy) | 0 – 30 | % |
| CO₂ Reduction (vs. fossil fuel) | 45 – 70 | %* |
*Based on typical biomass feedstock and 20% hydrogen co‑fire rate.
Application Scenarios
The dual‑fuel boiler is engineered for facilities that need both reliability and sustainability. Typical installations include:
- Industrial process heat for pulp & paper, cement, and steel plants seeking to meet green‑energy targets.
- District heating networks in municipalities transitioning from coal to renewable sources.
- Standalone power generators for remote communities where biomass is abundant but grid stability requires fast‑acting hydrogen.
- Combined heat and power (CHP) plants looking to increase overall plant efficiency while lowering carbon footprints.
Competitive Advantages
Unlike conventional biomass boilers, our system integrates hydrogen without the need for separate burners or extensive retrofits. This translates into:
- Lower Capital Expenditure: One vessel, one control system, reduced pipework.
- Scalable Design: Modules can be added in 2 MW increments to match load growth.
- Extended Maintenance Intervals: Gasification reduces fouling, cutting routine cleaning cycles by half.
- Future‑Proofing: The hydrogen inlet is engineered for pressures up to 30 bar, accommodating emerging high‑pressure electrolyzer outputs.
FAQ
What is the minimum order quantity (MOQ) for a custom‑engineered boiler?
We work on a project‑by‑project basis; the MOQ is one unit, but larger orders receive volume discounts and faster lead times.
Can the boiler be adapted for different biomass types?
Yes. Our gasifier can be tuned for wood chips, agricultural residues, or mixed municipal solid waste. Moisture content up to 25 % is acceptable after pre‑drying.
What is the typical lead time from order to shipment?
Standard models ship within 30–45 days after final design approval. Fully bespoke solutions may require 60–90 days, depending on engineering scope.
What warranty and after‑sales support are provided?
All units come with a 24‑month manufacturer warranty covering material and workmanship, plus optional extended service contracts and on‑site commissioning assistance.
Take the Next Step
Ready to future‑proof your energy portfolio with a high‑efficiency, low‑carbon boiler? Contact our engineering team today for a detailed quotation, performance modelling, and project timeline.
