Hydrogen‑Air Ratio Control System – Precision for Modern Refineries

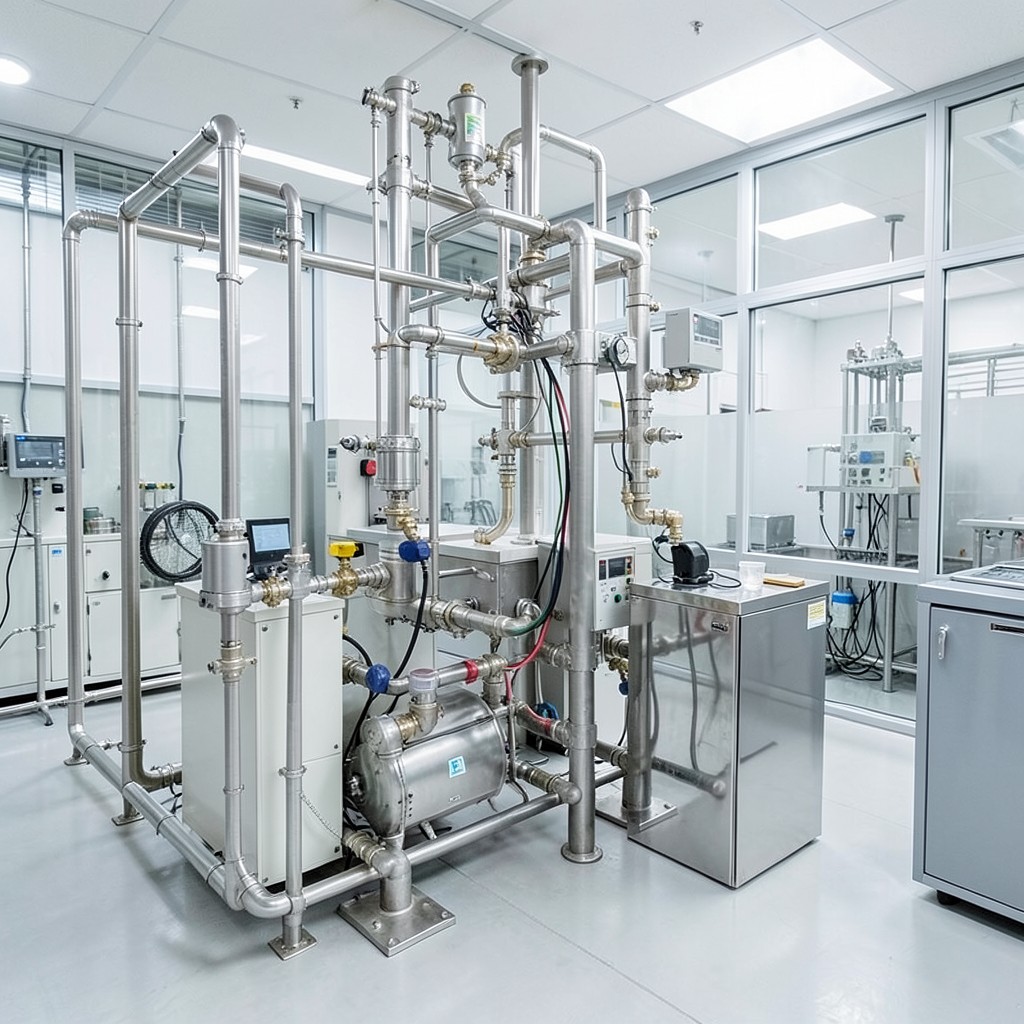

Our hydrogen air ratio control system factory delivers turnkey solutions that maintain the exact stoichiometric mix required for safe, efficient combustion and catalytic processes. Designed for large‑scale petrochemical complexes, ammonia plants, and fuel‑cell test rigs, the system continuously monitors hydrogen flow, air supply, and pressure to automatically adjust the ratio in real time.
Application Scenarios
The flexibility of our platform lets engineers deploy it across a variety of critical operations:
- High‑temperature hydrogen burners for refinery desulfurization.
- Ammonia synthesis loops where precise H₂/N₂ ratios impact yield.
- Fuel‑cell test stations requiring rapid ratio changes for performance mapping.
- Hydrogen‑rich gas blending in petro‑chemical reactors to meet emission limits.
Key Benefits & Competitive Edge
Our control units stand out because they combine rugged hardware with intelligent software, delivering measurable ROI:
- Dynamic Ratio Adjustment: Response time < 200 ms keeps the mix within ±0.5 % of target.
- Energy Savings: Optimized combustion reduces fuel consumption by up to 7 %.
- Safety First: Built‑in flame‑out detection and automatic purge prevent hazardous excursions.
- Scalable Architecture: Modules can be stacked from 10 kW up to 5 MW without redesign.
- Predictive Maintenance: Cloud‑connected analytics forecast component wear, lowering downtime.
Technical Specifications (customizable per order)
| Parameter | Standard Range | Unit |
|---|---|---|
| Hydrogen Flow Capacity | 10 – 5000 | Nm³/h |
| Air Flow Capacity | 20 – 10000 | Nm³/h |
| Operating Pressure | 0.5 – 30 | bar |
| Control Accuracy | ±0.5 % | — |
| Response Time | ≤200 | ms |
| Operating Temperature | ‑20 – +60 | °C |
All parameters are adjustable during the engineering phase to match project‑specific flow rates, pressure drops, and safety envelopes.
OEM / ODM Capabilities
As a dedicated hydrogen air ratio control system factory, we partner with OEMs to embed our control core into proprietary equipment. Our engineering team can co‑develop firmware, integrate custom HMI graphics, and certify the final assembly under CE, IECEx, and ATEX directives. Volume discounts start at 500 units, and we maintain a 15‑day prototype turnaround for qualified partners.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a standard system?
Our baseline configuration has an MOQ of 1 unit, enabling rapid pilot deployments. For bulk‑price tiers the threshold is 20 units.
Can the control algorithm be customized for non‑standard gas blends?
Yes. Our software team can implement proprietary lookup tables or adaptive PID loops to accommodate any hydrogen‑rich mixture, including syngas or reformate streams.
What are typical lead times after order confirmation?
Standard models ship within 15‑30 days. Fully customized units, including mechanical redesigns, are delivered in 45‑60 days depending on engineering complexity.
Is there a warranty or after‑sales support package?
All systems come with a 24‑month parts‑and‑labor warranty. Optional extended service contracts provide on‑site calibration, firmware updates, and spare‑part stocking.
Ready to secure a reliable hydrogen‑air mixing solution for your plant?
Contact Our Engineering Team
