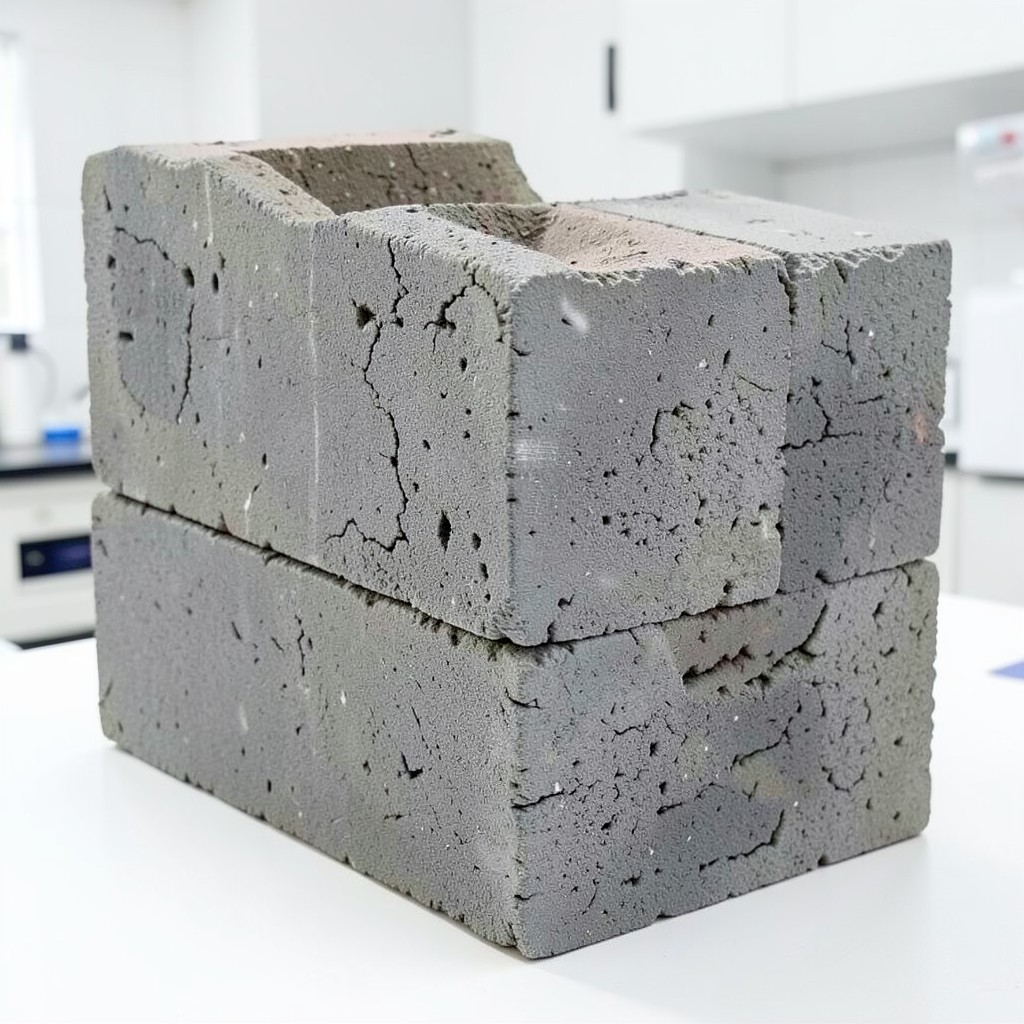

Refractory Insulation Bricks for Hydrogen Furnace – High‑Performance Thermal Protection
Our refractory insulation bricks for hydrogen furnace are engineered to deliver superior thermal stability, low heat loss, and exceptional resistance to hydrogen‑induced corrosion. Designed for continuous‑flow and batch‑type hydrogen furnaces, these bricks form the core of the furnace lining, safeguarding structural steel and prolonging service life while maintaining energy efficiency.
Built from a proprietary blend of high‑purity alumina, magnesia, and engineered ceramic fibers, each brick offers a tailored balance of thermal conductivity, compressive strength, and chemical inertness required by demanding hydrogen processing environments.
Technical Specifications (customizable per order)
| Parameter | Typical Range | Units |
|---|---|---|
| Nominal Density | 1.85 – 2.10 | g/cm³ |
| Compressive Strength (Room Temp) | 15 – 25 | MPa |
| Thermal Conductivity | 0.45 – 0.65 | W/m·K (800 °C) |
| Maximum Service Temperature | 1150 – 1300 | °C |
| Hydrogen Permeation Rate | ≤ 2 × 10⁻⁸ | cm³·cm/(cm²·s·Pa) |
| Shrinkage on Cooling | ≤ 0.5 | % (from 1300 °C) |
| Typical Size | 200 × 200 × 100 mm | mm |
All dimensions, densities, and additive packages can be adjusted to match your furnace geometry and operating cycle. Our engineering team works closely with you to define the optimal formulation before production.
Application Scenarios
- Hydrogen annealing furnaces – uniform heat distribution for stress‑relief of high‑strength steel.
- Hydrogen‑based carburizing lines – resistance to carbon pickup and rapid temperature cycling.
- Petrochemical reformer pre‑heaters – low thermal conductivity reduces auxiliary fuel consumption.
- Metal‑powder sintering ovens – maintains tight temperature tolerances essential for particle bonding.
In each case, the bricks act as a thermal barrier that limits heat loss to the furnace shell, while their chemical inertness prevents hydrogen embrittlement of the lining. The result is a measurable reduction in energy cost and a longer replacement interval compared with conventional dense refractories.
Competitive Advantages
When you specify our refractory insulation bricks for hydrogen furnace, you gain a suite of advantages that translate directly into operational ROI:
- Low thermal conductivity – reduces furnace wall heat loss by up to 30 % versus standard firebrick.
- Hydrogen‑impermeable matrix – eliminates internal gas leakage and protects downstream equipment.
- Extended service life – typical cycle life exceeds 200,000 h under continuous hydrogen exposure.
- Rapid installation – modular brick dimensions and pre‑formed interlocking edges cut labor time by 25 %.
- Compliance & traceability – material batches are documented to ISO 9001 and ASTM C‑170 standards.
FAQ
What is the minimum order quantity (MOQ) for custom‑shaped bricks?
Our standard MOQ is 2 000 units (approximately 2 m³). For larger projects we can reduce the MOQ with a signed purchase agreement, and for pilot‑scale trials we offer a 500‑unit starter pack.
Can the composition be modified for higher temperature or corrosive environments?
Yes. Our R&D lab can increase alumina content up to 95 % or incorporate zirconia additives to raise the maximum service temperature to 1500 °C. Each modification is validated by a full set of thermal‑shock and corrosion tests.
What is the typical lead time from order confirmation to shipment?
Standard production runs ship within 15‑45 days, depending on order volume and any material customization. Expedited tooling for unique shapes can add an additional 7‑10 days.
Do you provide warranty or performance guarantees?
All bricks are covered by a 12‑month warranty against material defects and a performance guarantee of ≤ 5 % deviation from the specified thermal conductivity for the first 12 months of service.
Contact our sales team today to discuss your project requirements and receive a tailored quotation.
