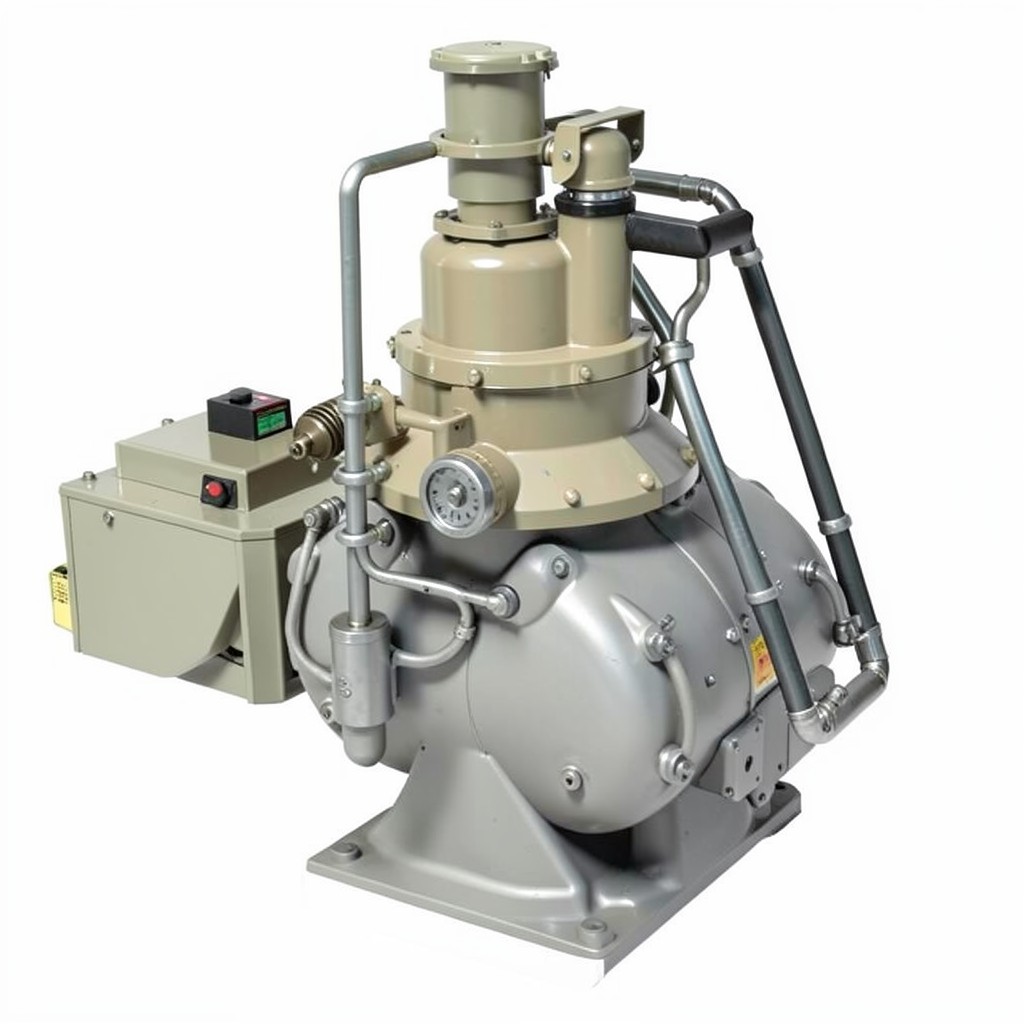

Fuel Oil Supply Unit for Marine Boiler Burner – Reliable Power‑Ready Solution
Our fuel oil supply unit for marine boiler burner delivers steady, precise oil flow to shipboard boilers, ensuring optimal combustion and reduced emissions. Engineered for the harsh marine environment, the system combines corrosion‑resistant alloys, vibration‑damped mounting, and intelligent control to keep your propulsion and auxiliary power plants running safely and efficiently.
Designed for new builds and retrofits, the unit integrates seamlessly with existing burner management systems and can be customized for a wide range of fuel grades, from low‑sulphur marine diesel to heavy fuel oil.
Key Benefits & Competitive Advantages
- Consistent delivery pressure (0.8–2.2 MPa) reduces burner flame instability.
- Modular design allows quick on‑site installation and future capacity upgrades.
- Low‑maintenance pump and filter assembly with easy‑access service ports.
- Compliant with IMO MARPOL Annex VI and ABS offshore rules.
- Integrated temperature & pressure sensors feed real‑time data to the ship’s control network.
- Built‑in surge protection safeguards against sudden pressure spikes.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Optional Upgrade |
|---|---|---|
| Flow Capacity | 150 – 1 200 L/h | Up to 2 000 L/h with larger pump |
| Operating Pressure | 0.8 – 2.2 MPa | 0.5 – 3.0 MPa (custom gauge) |
| Temperature Range | -20 °C – +60 °C | -30 °C – +80 °C (enhanced insulation) |
| Materials | 316 L stainless steel, EPDM seals | Duplex 2205 for high‑salinity service |
| Control Interface | Analog 4‑20 mA or Modbus RTU | Profibus/Profinet optional |
Application Scenarios
The unit is a core component for:
- Container vessels – high‑capacity boilers that support auxiliary power during port stays.
- Cruise ships – reliable fuel delivery to large‑scale steam generators for HVAC and water heating.
- Offshore supply & support ships – robust operation under continuous duty cycles and variable sea states.
- Naval auxiliary vessels – compliance‑driven installations where emission limits are strict.
In each case the system can be configured for either continuous 24/7 duty or intermittent operation, matching the boiler’s load profile while preserving fuel efficiency.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑spec fuel oil supply unit for marine boiler burner?
We accept single‑unit orders for prototype or test installations. Volume pricing and lead‑time improvements start at a batch of five units.
Can the unit be adapted for heavy fuel oil (HFO) with high viscosity?
Yes. By selecting a higher‑capacity pump, heated feed lines, and upgraded seals, the system can handle HFO viscosities up to 600 cSt at 20 °C.
What is the typical lead time from order confirmation to delivery?
Standard models ship within 15‑30 days. Fully customized configurations require 30‑45 days, depending on material availability and certification approvals.
What warranty and after‑sales support are provided?
All units come with a 24‑month warranty covering manufacturing defects. Technical support is available 24 hours a day, 7 days a week, with on‑site service options for critical vessels.
Ready to equip your fleet with a proven fuel delivery solution?
Contact Our Engineering Team Today
