Application Scenarios for a Marine Auxiliary Boiler on a Capsize Bulk Carrier
Operators of capsize bulk carriers demand a reliable source of steam for cargo heating, tank washing, and auxiliary engine pre‑heat. A marine auxiliary boiler for capsize bulk carrier delivers the necessary thermal energy while withstanding the harsh marine environment and the vessel’s unique stability profile. Whether the ship is loading temperature‑sensitive grain, de‑icing deck equipment, or maintaining habitability systems during long transits, the auxiliary boiler is engineered to operate continuously at 70‑85% duty cycle without compromising the vessel’s trim or ballast arrangement.
Product Overview

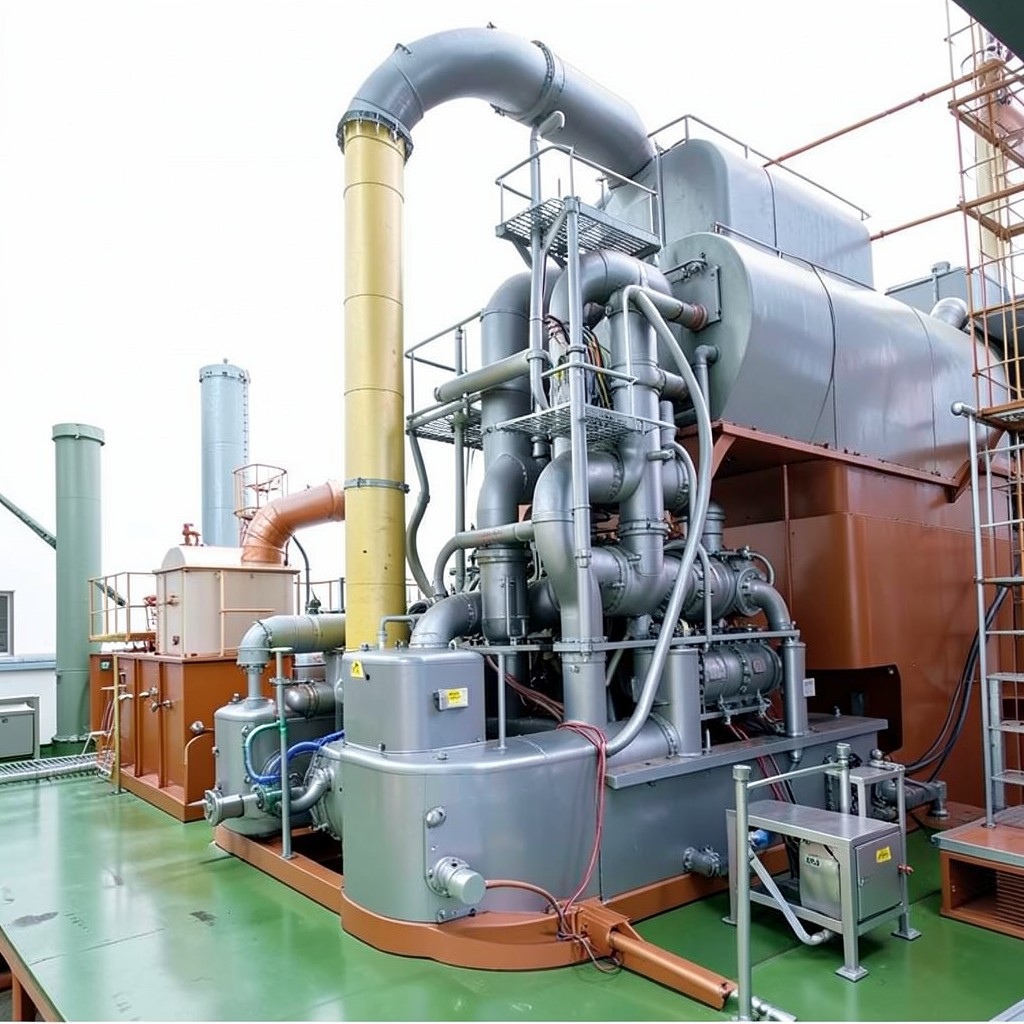

Our marine auxiliary boiler is a compact, water‑tube design specifically calibrated for the limited space and weight distribution challenges of capsize bulk carriers. Constructed from corrosion‑resistant stainless steel and equipped with a low‑profile furnace, the unit integrates seamlessly into existing engine rooms, providing up to 1,500 kW of steam output at 10‑12 bar pressure. The boiler features automatic fuel‑air balancing, remote monitoring via NMEA‑compatible interfaces, and a fast‑start cycle that reaches full load in under five minutes—critical for vessels that must respond quickly to cargo temperature requirements.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Optional Enhancements |
|---|---|---|
| Steam Generation Capacity | 1,200 – 1,500 kW | Up to 2,000 kW (custom turbine‑driven feed) |
| Operating Pressure | 10 – 12 bar | 15 bar (high‑temperature cargo) |
| Fuel Types | Heavy fuel oil, marine diesel | Dual‑fuel (LNG compatible) |
| Dimensions (L × W × H) | 2.8 m × 1.5 m × 1.6 m | Custom envelope (space‑saving layout) |
| Weight (incl. accessories) | 4,800 kg | Lightweight alloy frame (up to 15% reduction) |
| Control System | PLC with NMEA‑2000 output | Integrated DCS module, remote diagnostics |
All figures are typical; engineering teams can adjust tube layout, burner capacity, and instrumentation to meet specific vessel stability calculations and regulatory constraints.
Competitive Advantages
- Space‑Optimized Design: Low‑height furnace and modular tube bundle keep the center of gravity low, preserving the carrier’s capsizing resistance.
- Fuel Flexibility: Certified for both HFO and marine diesel, with optional LNG conversion to meet upcoming IMO fuel‑switch mandates.
- Rapid Start‑Up: Full steam in <5 minutes reduces idle time during cargo temperature adjustments.
- Robust Corrosion Protection: 316L stainless steel water‑walls, titanium heat‑exchanger panels, and cathodic protection extend service life beyond 15 years.
- Integrated Monitoring: Real‑time performance data feed directly into the ship’s bridge console, supporting predictive maintenance.
FAQ
What is the minimum order quantity (MOQ) for a customized marine auxiliary boiler?
We accept single‑unit orders for prototype or pilot installations. Volume discounts apply from a batch of five units onward.
Can the boiler be adapted to a different fuel regime?
Yes. The base model supports heavy fuel oil and marine diesel. An optional dual‑fuel package (including LNG) can be engineered without altering the main pressure vessel.
What is the typical lead time from order to delivery?
Standard production runs ship within 30‑45 days after final design approval. Highly customized configurations may require 60‑90 days, depending on material availability.
Is there a warranty and after‑sales support?
All units come with a 24‑month warranty covering manufacturing defects and a 12‑month optional extended service plan. Our technical service network provides 24/7 remote assistance and on‑site commissioning.
Ready to equip your capsize bulk carrier with a reliable steam source?
Contact Our Engineering Team Today
