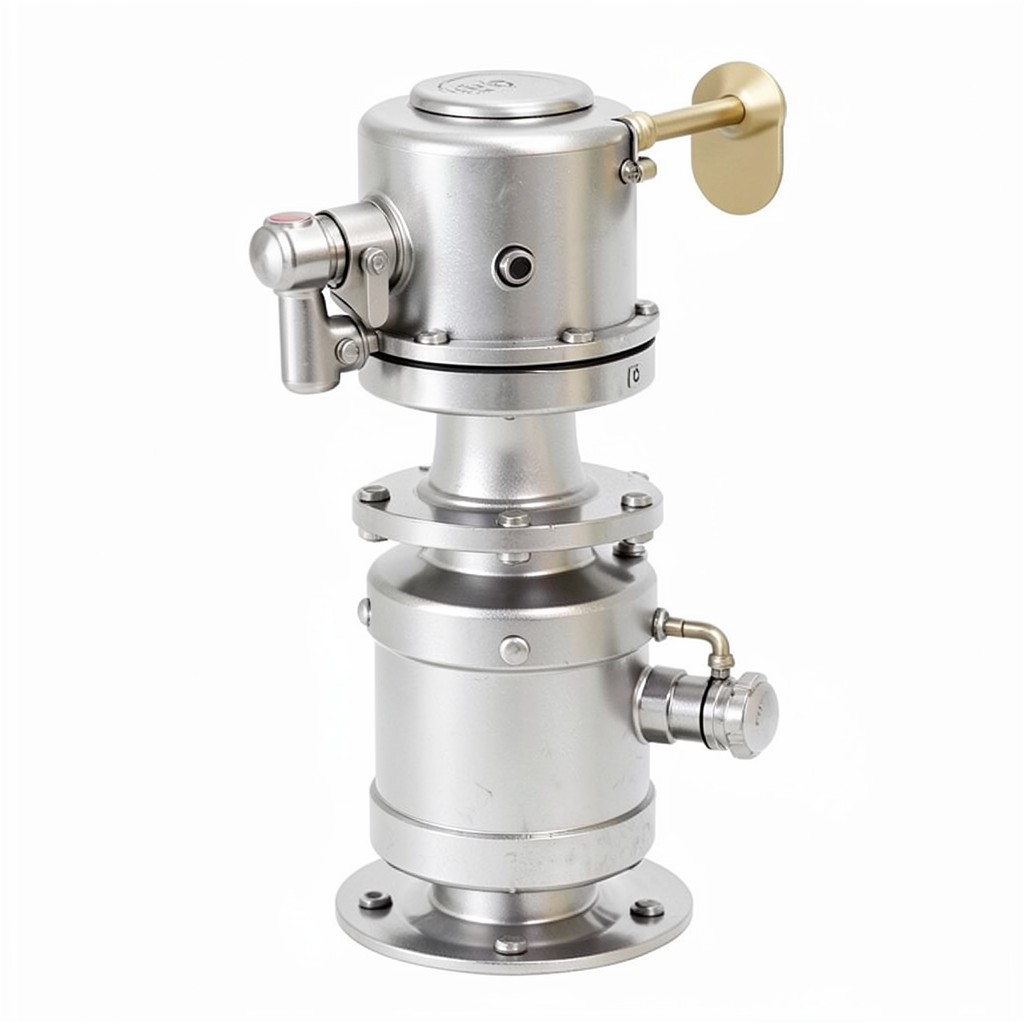

Marine Boiler Automatic Scum Blowdown Valve – Precision Control for Shipboard Steam Systems
The marine boiler automatic scum blowdown valve is engineered to protect high‑pressure steam generators on vessels from scale, sludge, and dissolved solids that can impair efficiency and cause costly downtime. By continuously monitoring water quality and automatically expelling accumulated scum, this valve maintains optimal boiler chemistry, reduces fuel consumption, and extends equipment life—all while meeting the strict reliability standards of maritime operations.
How It Works – Intelligent Blowdown Management
The valve incorporates a robust, corrosion‑resistant diaphragm linked to a pressure‑sensing module calibrated for seawater‑based boiler feed. When the blowdown controller detects a rise in total dissolved solids (TDS) beyond the preset threshold, the valve opens proportionally to purge the concentrated layer of impurities without manual intervention. A built‑in venting system prevents water hammer, and the actuator’s torque‑controlled motor ensures smooth operation even under high‑temperature conditions.
Integration is straightforward: the valve connects to the existing PLC or dedicated blowdown controller via standard 24 VDC signals. Diagnostic LEDs provide instant status feedback, and the firmware supports remote parameter adjustments through Modbus/TCP, allowing fleet managers to harmonize blowdown cycles across multiple vessels from a central monitoring station.
Application Scenarios – Where the Valve Delivers Value
- Marine propulsion boilers on cargo ships, tankers, and cruise liners where continuous operation demands minimal manual shutdowns.
- Auxiliary steam generators powering hotel services, desalination plants, and heating systems on offshore platforms.
- Retrofitting projects for older vessels seeking to comply with IMO Tier III emissions standards by improving boiler efficiency.
- New‑build installations where OEMs require a proven, pre‑certified blowdown solution that integrates with ship‑board automation suites.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Units |
|---|---|---|
| Connection Size (DN) | 50 – 150 | mm |
| Operating Pressure | 0.1 – 4.0 | MPa |
| Temperature Rating | 0 – 200 | °C |
| Material (Body) | 304/316L SS, Duplex | – |
| Actuator Type | Electric 24 VDC, Pneumatic (optional) | – |
| Control Interface | Analog 4‑20 mA, Modbus/TCP | – |
| Leak‑Proof Rating | IP66 | – |
All dimensions and performance data can be tailored to match vessel‑specific schematics, pressure classes, or certification regimes.
Competitive Advantages – Why Our Valve Stands Out
• Marine‑grade durability: Constructed from premium 316L stainless steel and duplex alloys, the valve resists corrosion from saline environments and high‑temperature steam cycles.
• Zero‑maintenance design: The diaphragm and seal assemblies are replaceable without dismantling the valve body, reducing shipyard downtime.
• Smart integration: Built‑in diagnostics, remote configuration, and alarm thresholds align with IMO’s Performance Standard for Marine Boilers.
• Proven reliability: Tested to exceed 10,000 operating cycles in simulated sea‑state conditions, delivering consistent blowdown performance under vibration and shock loads.
• Flexibility: OEM and ODM services allow custom branding, extended port‑size options, and firmware adaptation for proprietary control architectures.
FAQ
What is the minimum order quantity (MOQ) for a marine boiler automatic scum blowdown valve?
Standard MOQ is 5 units per model, allowing cost‑effective tooling. Larger batches receive tiered pricing and priority production slots.
Can the valve be customized to fit non‑standard pipe sizes?
Yes. Our engineering team can adapt flange dimensions, connection threads, and actuator mounts to meet the specific drawings supplied by the shipyard.
What is the typical lead time after order confirmation?
For standard configurations, lead time ranges from 15 to 45 days depending on order volume and certification requirements. Custom projects may require additional engineering time, which is discussed during the quotation phase.
Do you offer warranty or after‑sales support?
All valves come with a 24‑month limited warranty covering material and workmanship. Technical support is available 24 h/7 d via phone, email, or remote diagnostics platform.
Ready to boost your vessel’s boiler efficiency and compliance? Contact our engineering team today for a free quotation and technical review.
