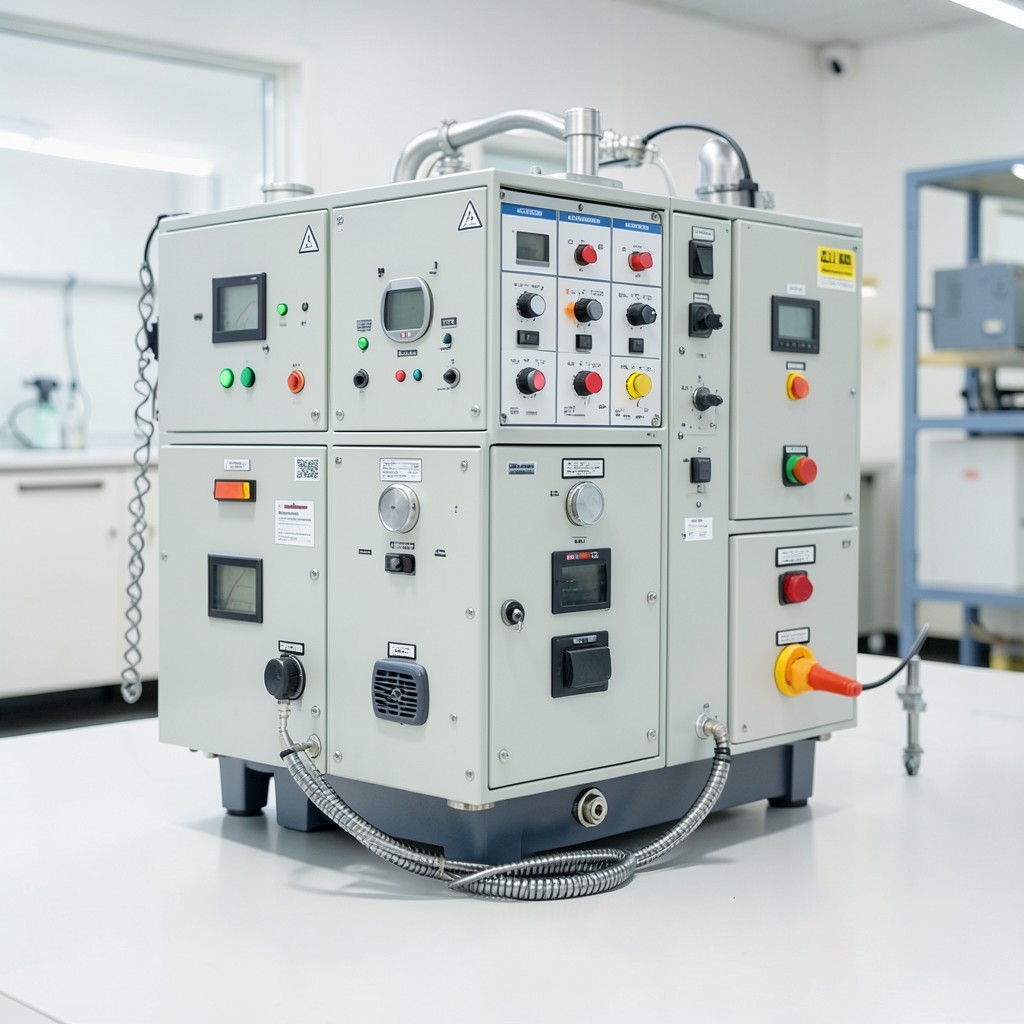

Marine Boiler Control Panel Automatic System – Integrated Power Management for Shipboard Boilers
The marine boiler control panel automatic system is a purpose‑engineered control console that synchronises fuel feed, water level, pressure regulation, and safety interlocks for steam and hot‑water boilers on vessels ranging from coastal cargo ships to offshore support vessels. Designed for harsh marine environments, the panel delivers real‑time monitoring, remote diagnostics, and automated start‑stop sequences, helping ship owners reduce fuel consumption, extend boiler life, and meet flag‑state emission standards.
How It Works – Seamless Automation from Start‑Up to Shutdown
1. Sensor Fusion: Temperature, pressure, flow, and level transducers feed 0‑10 V or 4‑20 mA signals into a PLC‑based core module.
2. Logic Engine: Pre‑programmed PID loops continuously adjust fuel‑pump speed and feed‑water pumps to maintain set‑points defined by the vessel’s operation schedule.
3. Safety Interlocks: Over‑pressure, low‑water, and flame‑failure conditions trigger an immediate shutdown sequence, while audible and visual alarms alert the bridge crew.
4. Remote Access: Built‑in Modbus TCP/IP and NMEA 2000 gateways allow integration with the ship’s integrated automation system (IAS) for centralised monitoring and historical data logging.
5. Auto‑Recovery: After a fault clearance, the panel can automatically restart the boiler following a configurable delay, reducing crew workload during prolonged voyages.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Units |
|---|---|---|
| Input Voltage | 220‑240 / 380‑415 | V AC |
| Control Logic | PLC (IEC 61131‑3) | — |
| Operating Temperature | ‑20 to +55 | °C |
| Ingress Protection | IP66 | — |
| Communication Protocols | Modbus TCP/IP, NMEA 2000, CAN‑bus | — |
| Display | 10‑inch TFT, touch‑screen, back‑lit | — |
| Certifications | ABS, DNV‑GL, IMO MARPOL 2020 compliant | — |
container ship auxiliary steam boiler factory
Industry Certifications & Safety
All units are built to meet internationally recognised maritime standards. The control panel carries ABS classification approval, DNV‑GL type‑approval, and complies with IMO MARPOL Annex VI emission regulations. Electrical components satisfy IEC 60947‑4‑1 (motor starters) and IEC 60730‑1 (automatic controls). The enclosure is fabricated from marine‑grade aluminium alloy with an IP66 seal, ensuring resistance to salt spray, vibration, and temperature extremes.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑configured panel?
Our standard MOQ is one unit, which makes us ideal for replacement projects or new‑build vessels. For bulk orders (≥10 units) we offer volume discounts and streamlined production scheduling.
Can the system be tailored to a specific boiler type or vessel class?
Absolutely. Our engineering team works with the shipyard or operator to map sensor layouts, control set‑points, and communication interfaces (e.g., NMEA 2000 for yachts, Modbus for bulk carriers). Custom firmware and HMI graphics are available at no extra tooling cost.
What is the typical lead time from order confirmation to shipment?
Standard configurations ship within 15–30 days after receipt of the purchase order. Fully bespoke solutions, including firmware development, require 30–45 days depending on complexity and required certifications.
What warranty and after‑sales support are provided for the marine boiler control panel automatic system?
We offer a 24‑month comprehensive warranty covering parts, labor, and firmware updates. Technical support is available 24 hours a day via satellite link, and we maintain a network of authorized service centres in major ports worldwide.
Take the Next Step
Whether you are upgrading an existing plant or specifying a new propulsion system, our marine boiler control panel automatic system delivers the reliability, compliance, and operational efficiency demanded by today’s commercial fleets.
Request a Quote or Technical Datasheet
