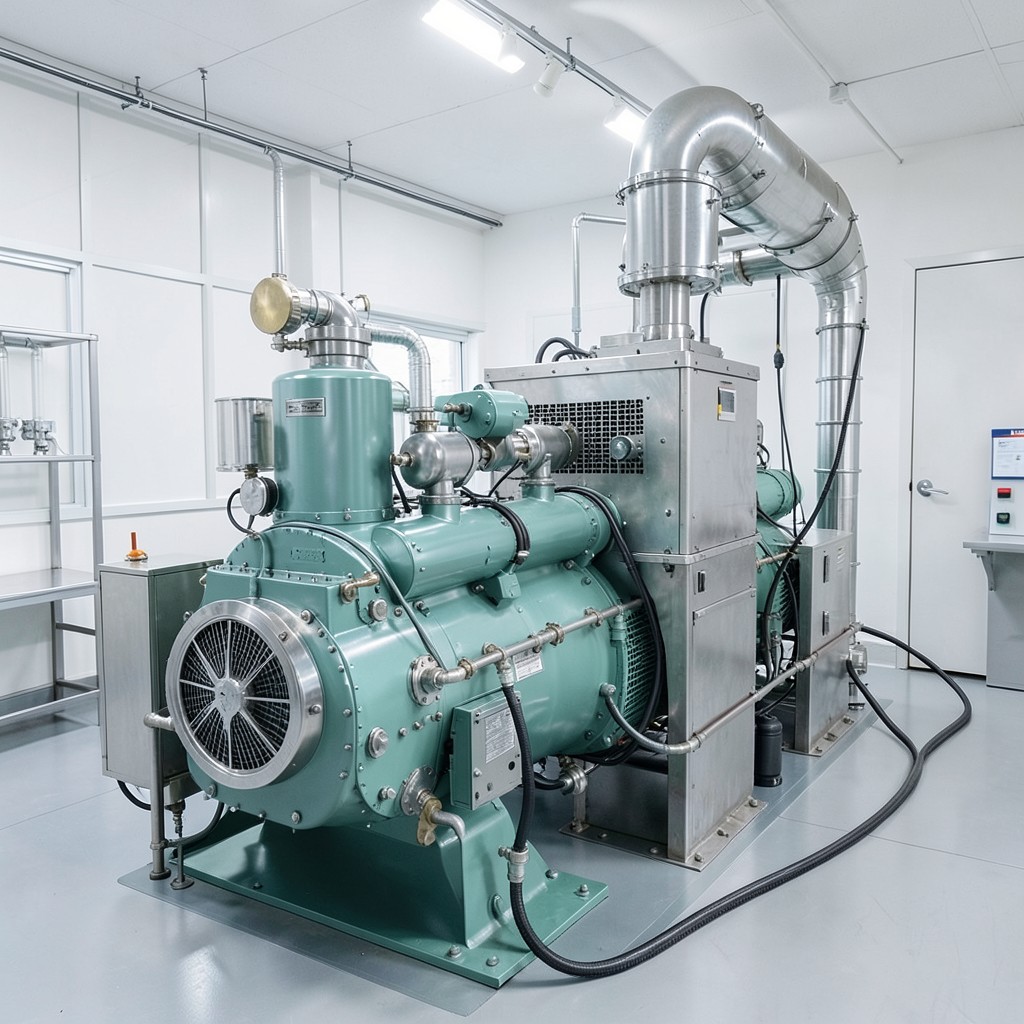

Marine Boiler Forced Draft Fan – Engineered by a Dedicated Factory
Product Overview
Our marine boiler forced draft fan is manufactured in a specialized marine boiler forced draft fan factory that blends ship‑yard experience with precision engineering. Designed for high‑pressure steam generation on vessels ranging from coastal cargo ships to offshore support rigs, the fan delivers reliable air‑flow to maintain optimal combustion and heat transfer. Constructed from corrosion‑resistant alloys and equipped with advanced blade geometry, it meets the rigorous duty cycles of continuous marine operation while minimizing fuel consumption.
The unit can be supplied as a standard model or fully customized to match vessel‑specific boiler layouts, voltage systems, and control interfaces. Our factory maintains ISO‑9001 quality management and adheres to ABS and Lloyd’s Register guidelines, ensuring every fan meets the safety and performance standards demanded by ship owners and classification societies.
Application Scenarios
The forced draft fan is a critical component in the following marine environments:
- Medium‑speed diesel‑powered cargo vessels where boiler load varies with speed and cargo handling.
- Offshore platform supply ships that run high‑efficiency marine boilers for auxiliary power generation.
- Naval auxiliary vessels requiring rapid start‑up and high‑temperature steam for weapons and heating systems.
- Ferry and cruise ships that integrate combined heat and power (CHP) systems, demanding consistent air‑flow for low‑emission combustion.
Technical Specifications
| Parameter | Typical Range | Customizable Options |
|---|---|---|
| Air Flow (CFM) | 30,000 – 150,000 | Step increments of 5,000 CFM |
| Static Pressure (in. wg) | 0.8 – 2.5 | Up to 4.0 with reinforced housing |
| Motor Power (kW) | 45 – 250 | Variable frequency drive (VFD) ready |
| Speed (RPM) | 1,200 – 3,600 | Custom speed ratios |
| Material (Blade/Housing) | 316L Stainless Steel / Aluminum Alloy | Duplex, Inconel, or Titanium options |
| Operating Temperature | -20 °C to +70 °C | Extended range to +120 °C with cooling system |
| Duty Cycle | Continuous 24 h / 7 d | Intermittent (up to 50 % load) available |
All figures are typical; exact values are finalized during the engineering phase to match your vessel’s design envelope.
Competitive Advantages
Choosing a fan from our marine boiler forced draft fan factory delivers measurable benefits:
- Optimized Aerodynamics: CFD‑validated blade profiles reduce power draw by up to 12 % compared with generic designs.
- Robust Corrosion Resistance: High‑grade alloys and marine‑grade coatings extend service life beyond 15 years in salt‑water environments.
- Modular Maintenance: Quick‑release hub and split‑case housing enable fan removal in under 90 minutes without dismantling the boiler.
- Energy Management Ready: Integrated VFD and temperature‑compensated sensors support remote monitoring via standard NMEA 2000 or MODBUS.
- Global After‑Sales Network: Certified service centers in Asia, Europe, and the Americas provide spare parts within 48 hours for critical stock items.
FAQ
What is the minimum order quantity (MOQ) for a custom‑spec fan?
Our production line is set up for batch runs of 5 units or more for fully customized models. Standard catalog sizes are available with an MOQ of one unit.
Can the fan be integrated with existing control systems?
Yes. The fan can be supplied with 400 Hz, 50 Hz or 60 Hz motor options and includes optional VFD modules that communicate via NMEA 2000, MODBUS‑RTU, or proprietary ship‑board control networks.
What is the typical lead time after order confirmation?
Standard models ship within 15‑25 days. Fully engineered units require 30‑45 days, depending on material selection and testing requirements.
Do you provide warranty and post‑delivery support?
All fans come with a 24‑month manufacturer warranty covering material and workmanship. Extended warranty and on‑site commissioning packages are available upon request.
Ready to boost your vessel’s boiler efficiency with a fan built for the toughest marine conditions?
