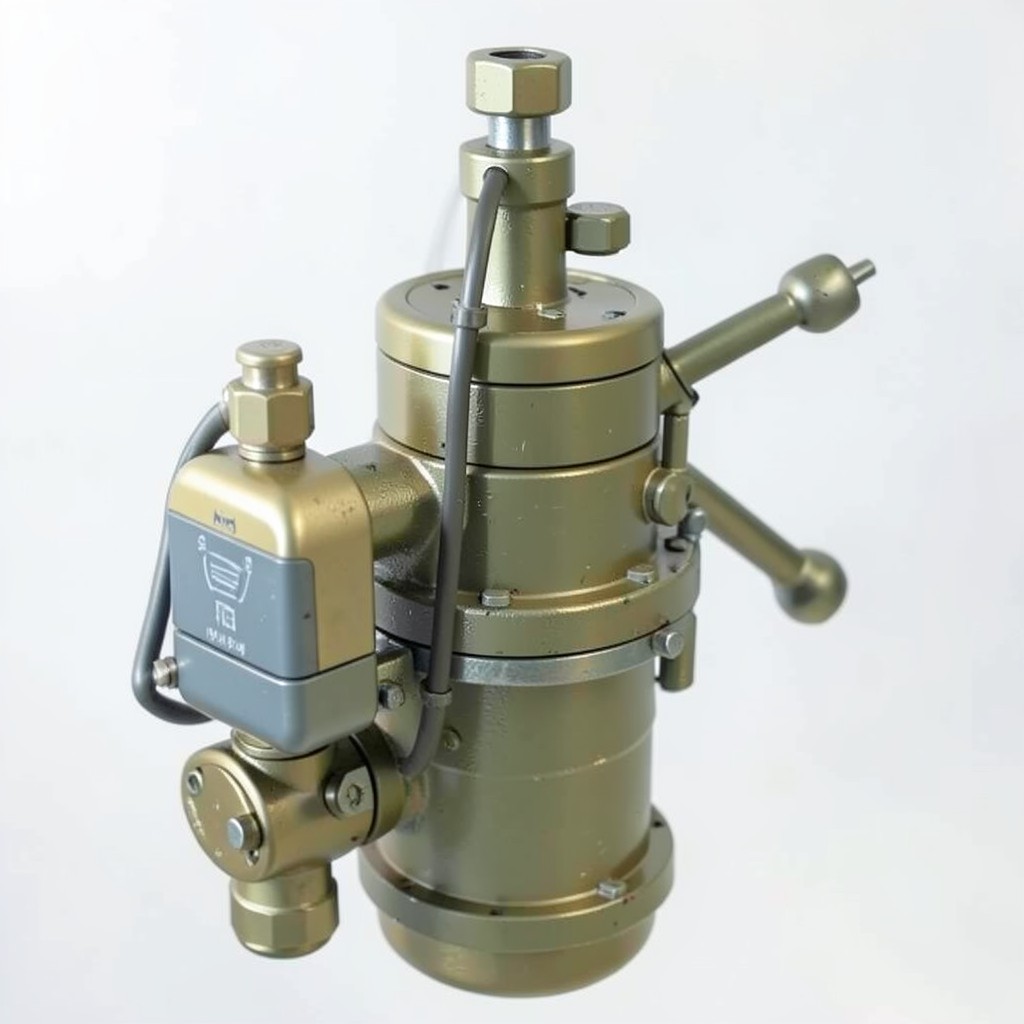

Marine Boiler Fuel Oil Emergency Shutoff Valve – Reliable Protection for Shipboard Power Systems
The marine boiler fuel oil emergency shutoff valve is engineered to isolate fuel supply instantly when abnormal pressure, temperature, or fire conditions are detected on a vessel. Designed for integration with high‑pressure fuel oil systems, it provides a fail‑safe barrier that prevents uncontrolled fuel flow, protecting equipment, crew, and the environment.
Built to meet the rigorous demands of marine propulsion and auxiliary power plants, this valve combines robust mechanical design with advanced safety actuation. It is a critical component for any new build or retrofit project that must comply with SOLAS, MARPOL, and class society requirements.
Application Scenarios
Shipyards and marine equipment integrators specify this shutoff valve for a range of vessels, including:
- Container ships and bulk carriers with dual‑fuel boiler installations.
- Cruise liners operating large auxiliary boilers for HVAC and hot water.
- Offshore support vessels that run continuous‑duty fuel‑oil burners.
- Naval and coast guard patrol boats requiring rapid emergency isolation.
In each case, the valve’s quick‑acting pneumatic or electric actuator can be tied into the ship’s fire detection system, allowing automatic closure within milliseconds of a fault signal.
Technical Specifications
| Parameter | Typical Range | Units |
|---|---|---|
| Size (DN) | 50 – 250 | mm |
| Design Pressure | 16 – 30 | bar |
| Operating Temperature | -20 to +120 | °C |
| Actuation Time | ≤ 200 | ms |
| Body Material | Carbon steel, ASTM A105, with optional duplex coating | – |
| Seal Type | Metal‑to‑metal, soft‑seat (V‑ring) options | – |
| Connection Type | Flanged (ANSI B16.5) or welded (API 6D) | – |
All dimensions and pressure ratings are customizable per order to match the vessel’s engineering drawings.
Industry Certifications & Safety
Our valve conforms to the principal marine standards governing safety and performance:
- ABS Class A and B approvals for emergency isolation.
- Classification Society approval (LR, DNV‑GL, Bureau Veritas) for installation on SOLAS‑compliant vessels.
- Compliance with ISO 9001:2015 quality management and ISO 14001:2015 environmental management.
- Materials meet ASTM A105 / ASME B16.34 requirements; optional NACE‑MR0175 for corrosive offshore environments.
Documentation packages include a Test Report, Material Test Certificate, and a detailed Installation & Maintenance Manual that align with IMO guidelines.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑size valve?
We accept single‑piece orders for prototype or trial installations. Standard production runs start at 10 units, with volume discounts available from 50 pieces onward.
Can the actuation method be adapted to our existing control system?
Yes. The valve is supplied with interchangeable pneumatic, electric (24 VDC), or hydraulic actuators. Interface wiring diagrams are provided to match NMEA‑2000, CAN‑bus, or analog 4‑20 mA signals.
What is the typical lead time after order confirmation?
Standard models are shipped within 15‑30 days. For custom pressure ratings, special coatings, or non‑standard sizes, the lead time is 30‑45 days, depending on engineering review and material availability.
Do you offer warranty and after‑sales support?
All valves carry a 24‑month warranty against manufacturing defects. Our technical team provides on‑site commissioning assistance and a 24/7 hotline for emergency troubleshooting.
Ready to Secure Your Boiler System?
Contact our marine engineering sales office today to discuss specifications, obtain a quotation, or arrange a virtual product demo.
