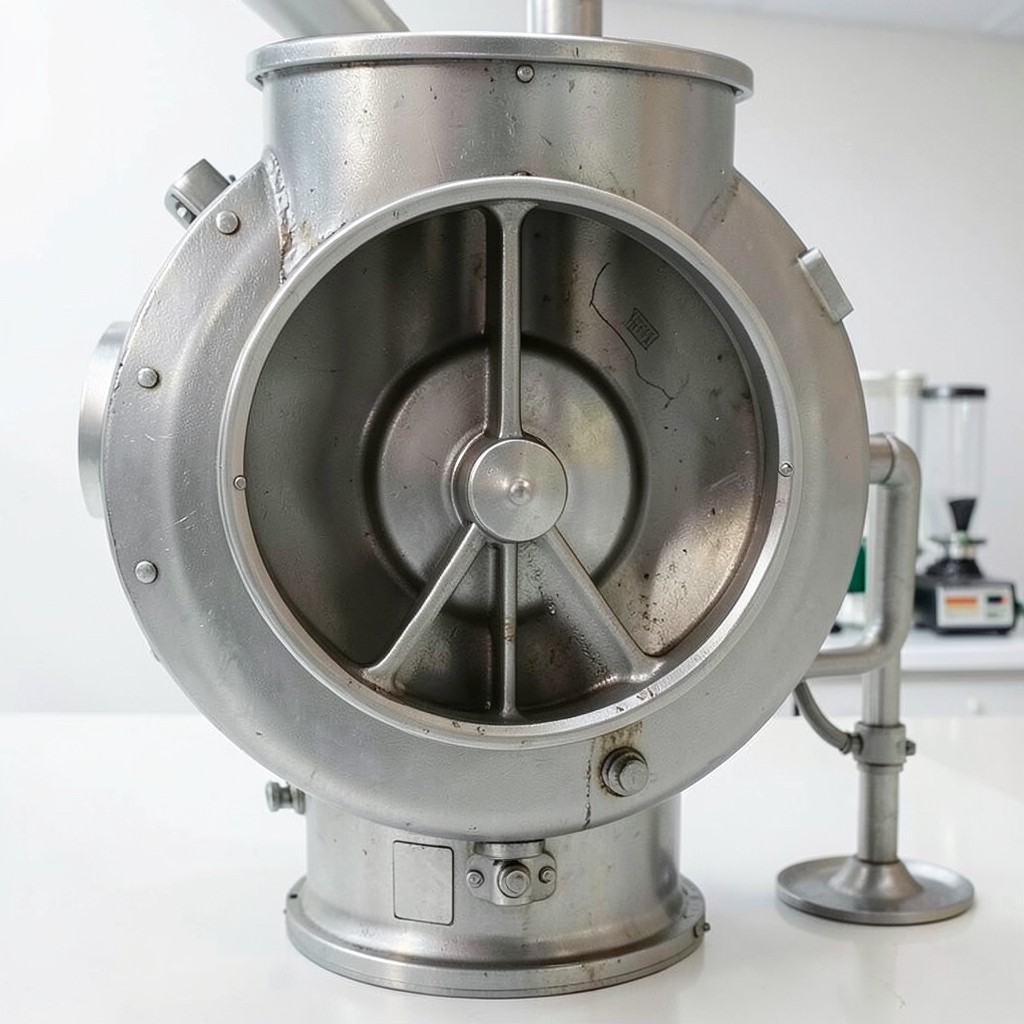

The marine exhaust gas boiler bypass damper is engineered to regulate flue‑gas recirculation in marine boiler rooms, ensuring optimal combustion stability and rapid load changes. Designed for integration with low‑speed diesel‑engine generators, this damper provides reliable isolation of the exhaust circuit during start‑up, shutdown, or emergency venting, protecting downstream equipment and maintaining compliance with IMO emission standards.

Built from marine‑grade stainless steel and equipped with a pneumatic or electric actuator, the unit delivers precise positioning from 0 % to 100 % open, even under high‑temperature, high‑pressure conditions typical of shipboard exhaust systems. Its compact, modular construction simplifies retro‑fit projects and reduces installation time in confined engine‑room spaces.

During normal operation the damper remains partially open, allowing a controlled portion of exhaust gas to bypass the heat‑recovery section. When the boiler load drops or a rapid reduction in fuel input is required, the actuator drives the damper toward the closed position, diverting the flow to the atmospheric vent. This immediate change prevents over‑pressure in the heat‑exchanger and stabilises flame conditions, extending the life of boiler tubes and downstream turbines.

The control logic can be linked to the vessel’s Engine Management System (EMS) or to a standalone PLC, enabling automated response based on pressure, temperature, or load‑setpoint signals. The result is a seamless transition between bypass and normal flow modes without manual intervention, reducing crew workload and minimizing the risk of human error.

• Large cargo vessels and container ships equipped with auxiliary boilers for heating and hot‑water generation.
• Cruise liners where rapid changes in passenger‑area climate control demand swift boiler load adjustments.
• Naval vessels that operate under variable power profiles and must meet stringent emissions regulations.
• Offshore support vessels where exhaust‑gas recirculation improves fuel efficiency during low‑speed loitering.

In each case the bypass damper contributes to fuel‑saving strategies, lowers maintenance intervals, and helps the ship stay within the limits set by MARPOL Annex VI.

• Marine‑grade durability: 316L stainless steel resists corrosion from saline environments, eliminating premature wall‑thinning.
• Fast‑cycle response: Actuators achieve full‑stroke in under 3 seconds, supporting rapid load ramps common in auxiliary boilers.
• Modular design: Standardized flange connections and interchangeable actuator modules simplify spare‑part logistics and allow on‑site upgrades.
• Integrated diagnostics: Optional feedback sensors provide real‑time damper position and fault reporting to the vessel’s control network.
• OEM/ODM flexibility: We collaborate with shipbuilders to tailor size, actuation method, and control interface to project‑specific specifications.

What is the minimum order quantity (MOQ) for a custom‑size bypass damper?

We accept orders as low as a single unit for prototype or trial installations. Larger production runs benefit from volume pricing and reduced lead time.

Can the actuator be integrated with existing ship‑board control systems?

Yes. Both pneumatic and electric versions support 4‑20 mA, Modbus TCP, and CAN‑bus protocols, allowing seamless integration with most marine EMS platforms.

What is the typical lead time from order confirmation to shipment?

Standard models ship within 15‑30 days. Fully customized configurations, including special materials or unique actuator options, require 30‑45 days depending on order volume.

Do you offer warranty and after‑sales support?

All units come with a 24‑month limited warranty covering material and workmanship. Our technical service team provides on‑site assistance, spare‑part supply, and firmware updates for the electronic actuator variants.
