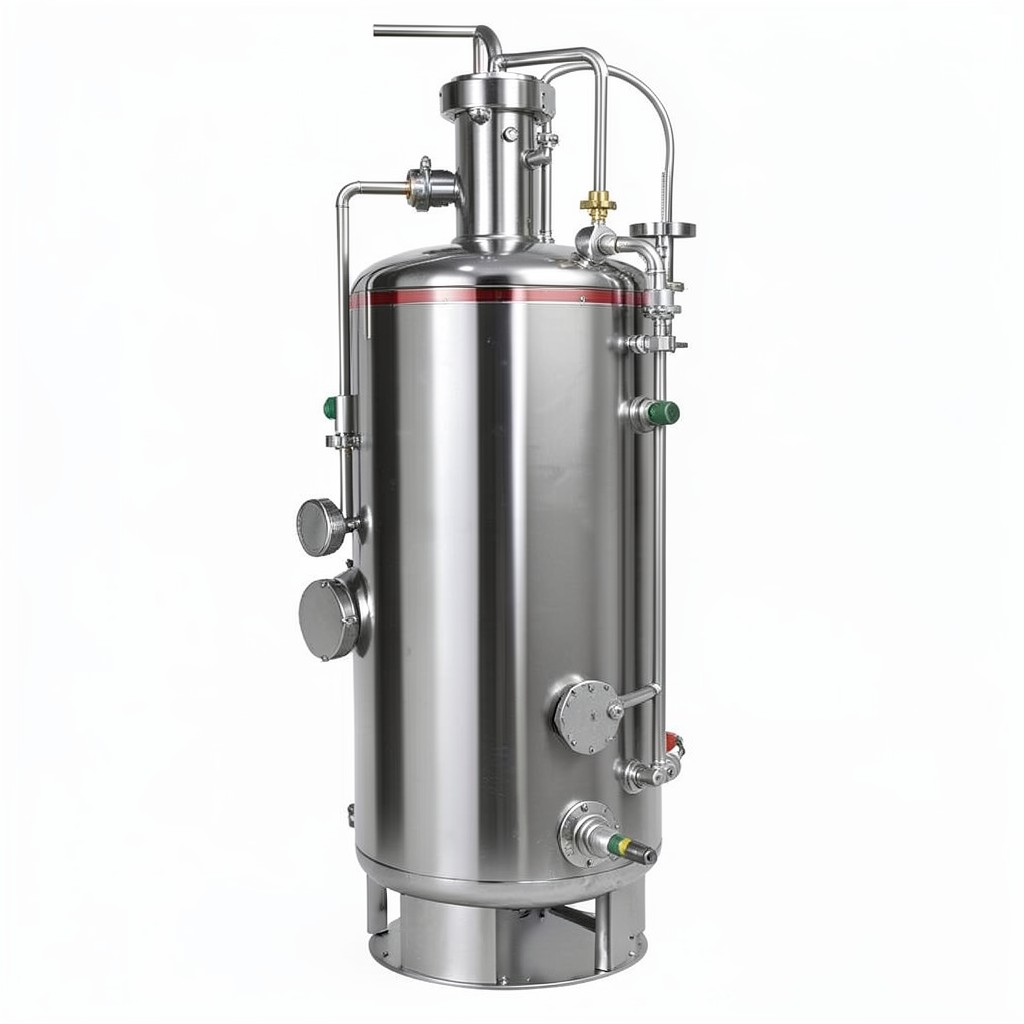

CE Marked Stainless Steel Pharma Boiler – Trusted Supplier for GMP‑Compliant Production
Product Overview
Our company acts as a ce marked stainless steel pharma boiler supplier dedicated to delivering high‑performance steam generators that meet the strict hygiene and safety requirements of pharmaceutical manufacturing. Built from 316L food‑grade stainless steel, each boiler is engineered for cleanability, corrosion resistance, and long‑term reliability under continuous duty cycles. Designed for seamless integration into GMP‑validated lines, the units support precise temperature control, rapid start‑up, and energy‑efficient operation.
Application Scenarios
Pharma boilers are a critical component in a variety of processes where sterile steam is mandatory. Typical installations include:
- Sterile water production for injectable formulations.
- Cleaning‑in‑place (CIP) and steam‑in‑place (SIP) cycles for process equipment.
- Drying and lyophilization pre‑treatment steps.
- Heat‑induced reactions in API synthesis requiring precise temperature ramps.
Our boilers can be supplied with integrated control panels, remote monitoring, and optional condensate recovery systems to match the specific workflow of each facility.
Technical Specifications (customizable per order)
| Parameter | Standard Range | Typical Options |
|---|---|---|
| Nominal Capacity | 5 – 150 kg/h | 10 kg/h, 25 kg/h, 50 kg/h, 100 kg/h |
| Operating Pressure | 0.1 – 2.0 MPa | 0.4 MPa (standard), 1.0 MPa (high‑pressure) |
| Temperature Range | 80 °C – 180 °C | 120 °C, 150 °C, 170 °C |
| Material | 316L SS (ISO 3506‑1) | 316L, 304L (optional) |
| Control Interface | Analog/Digital | PLC‑ready, HMI touchscreen, Modbus TCP/IP |
| Lead Time | 15 – 45 days | Standard, Expedited (additional cost) |
All dimensions, pressure ratings, and control options can be tailored to match the spatial constraints and process requirements of your plant.
Industry Certifications & Safety
Every unit leaves the factory with a full CE mark, confirming compliance with the EU Machinery Directive, Low Voltage Directive, and Pressure Equipment Directive. In addition, we align with:
- ISO 13485 – Medical device quality management.
- ISO 14644‑1 – Cleanroom classification for equipment surfaces.
- FDA 21 CFR 211 – Current Good Manufacturing Practice (cGMP) for pharmaceutical production.
- PED (Pressure Equipment Directive) – Design pressure verification.
Our boilers undergo rigorous factory acceptance testing (FAT) and are supplied with a full validation package, including pressure‑test certificates, material traceability records, and a 24‑month warranty covering workmanship and material defects.
FAQ
What is the minimum order quantity (MOQ) for a custom stainless‑steel pharma boiler?
We accept orders from a single unit up to full‑plant batches. The MOQ is one boiler, enabling fast‑track projects for start‑ups or pilot lines.
Can the boiler be supplied with a CE mark and additional regulatory approvals?
Yes. As a dedicated ce marked stainless steel pharma boiler supplier, we provide CE documentation and can add FDA, GMP, or local authority certifications on request.
What customization options are available?
All key parameters—capacity, pressure, temperature set‑points, control logic, and external connections—are configurable. We also offer optional accessories such as condensate traps, steam‑distribution manifolds, and insulated cladding.
What warranty and after‑sales support do you provide?
Every boiler carries a 24‑month warranty covering material and workmanship. Our technical team offers remote troubleshooting, on‑site commissioning, and a spare‑parts catalogue for up to five years.
Ready to Equip Your Facility with a Certified Pharma Boiler?
Contact our engineering sales office today to discuss your specific steam requirements, request a quotation, or arrange a virtual product tour. Our experts will guide you from concept through installation, ensuring a smooth, compliant rollout.
