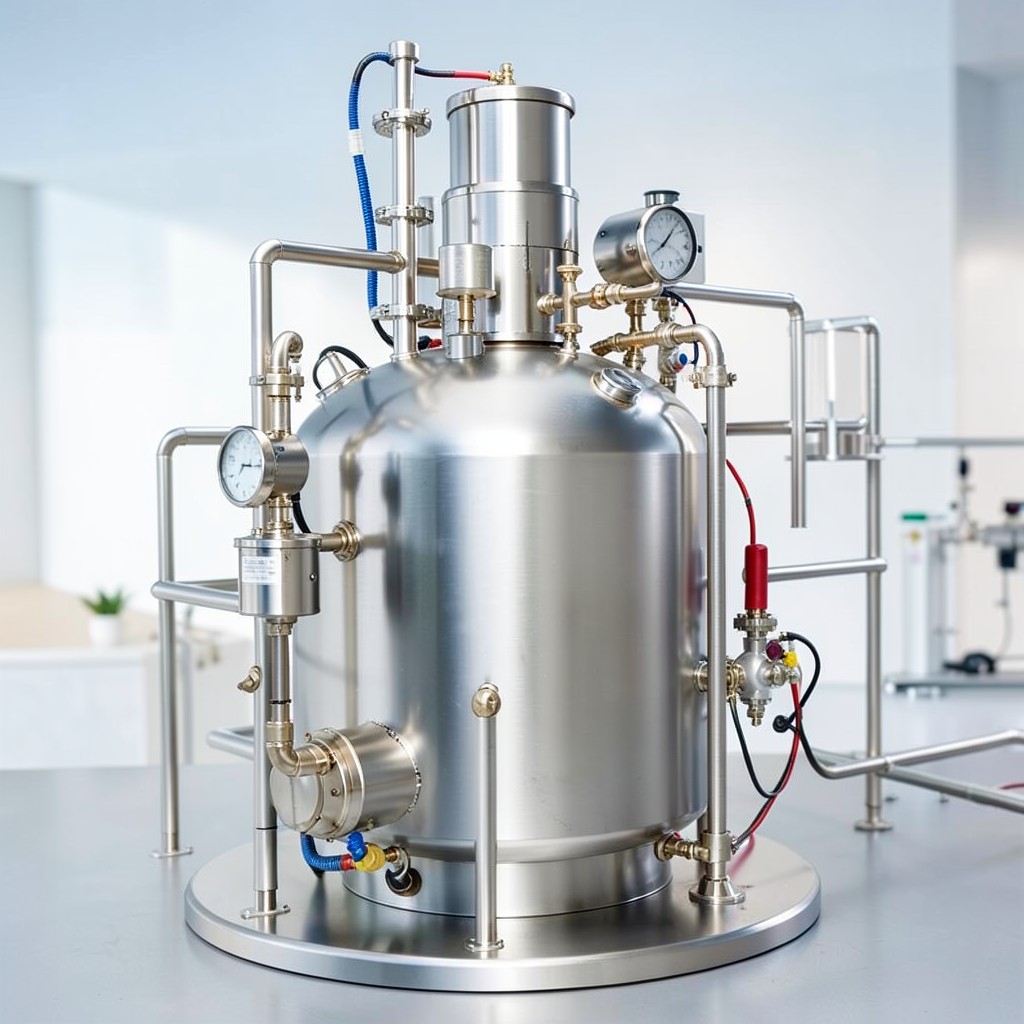

High Voltage Electrode Clean Steam Boiler for Pharma
The high voltage electrode clean steam boiler pharma is engineered to deliver ultra‑pure steam that meets stringent pharmaceutical manufacturing standards. Designed for continuous‑flow processes, this boiler integrates a high‑voltage electrode system that eliminates contaminants at the source, ensuring consistent sterility and compliance across batch and aseptic operations.
How It Works – Clean Steam Generation
The core of the system is a high‑voltage electrode immersed in the boiler water. When energized, the electrode creates a micro‑plasma field that dissociates dissolved impurities, organic residues, and microbial life. The resulting water is instantly vaporized in a sealed, stainless‑steel chamber, producing steam that is free of endotoxins, particulates, and chemical carry‑over. The process operates under a closed‑loop control, continuously monitoring temperature, pressure, and conductivity to maintain optimal steam quality without manual intervention.
Key Benefits & Features
- Zero‑Contamination Steam – High‑voltage electrode eliminates microbial load at the water stage, delivering steam that meets USP Class 1 specifications.
- Energy‑Efficient Operation – Direct electrode heating reduces heat‑up time by up to 40 % compared with conventional fire‑tube boilers.
- Compact Footprint – Modular design fits within standard clean‑room bays (800 mm × 1200 mm × 1500 mm).
- Integrated Control Suite – PLC‑compatible interface with real‑time data logging, alarm thresholds, and remote diagnostics.
- Scalable Capacity – Available from 5 kg/h to 200 kg/h steam output, selectable per project.
- Rapid Maintenance – Quick‑release electrode cartridge minimizes downtime during service.
Typical Specifications (customizable per order)
| Parameter | Range | Unit |
|---|---|---|
| Steam Capacity | 5 – 200 | kg/h |
| Operating Pressure | 0.5 – 2.0 | MPa |
| Inlet Water Quality | ≤ 10 µS/cm | Conductivity |
| Electrode Voltage | 12 – 30 | kV |
| Material of Construction | 316L SS, ASTM A240 | – |
| Warranty | 24 months | – |
Application Scenarios
- Sterile Fill Lines – Continuous steam for jacketed vessels where any microbial breach would compromise product safety.
- Aseptic Filtration – Provides purge steam that meets ISO 14644‑1 clean‑room classifications.
- Cleaning‑In‑Place (CIP) – High‑temperature steam for rapid equipment sanitization without chemical residues.
- Lyophilization Pre‑Freezing – Precise low‑pressure steam for controlled freezing cycles.
Industry Certifications & Safety
All units are manufactured to cGMP standards and carry CE marking for the European market. Electrical components comply with IEC 60204‑1, while pressure vessel construction follows ASME Section VIII. The high‑voltage electrode is insulated to IP 68, and the control panel meets IEC 61010‑1 safety requirements. Documentation includes a full Validation Package (IQ/OQ/PQ) to streamline FDA 21 CFR 211 submissions.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑rated boiler?
Our standard MOQ is one unit per specified capacity. For projects requiring multiple identical units, we can offer volume pricing and coordinated delivery schedules.
Can the high voltage electrode be adapted for different water qualities?
Yes. The electrode cartridge is interchangeable and can be tuned for inlet conductivities ranging from 5 µS/cm up to 50 µS/cm. Optional pre‑filtration kits are available to extend electrode life.
What is the typical lead time from order to shipment?
Standard models ship within 15‑30 days after receipt of a purchase order and engineering sign‑off. Fully custom configurations require 30‑45 days, depending on the complexity of the control integration.
Does the high voltage electrode clean steam boiler pharma include a warranty?
All units are covered by a 24‑month comprehensive warranty covering parts, labor, and on‑site technical support. Extended service contracts are also available.
Ready to Upgrade Your Steam System?
If you need a steam source that guarantees sterility, reduces energy consumption, and aligns with pharmaceutical regulations, contact our engineering team today. We’ll work with you to size, configure, and certify the perfect high voltage electrode clean steam boiler pharma solution for your facility.
