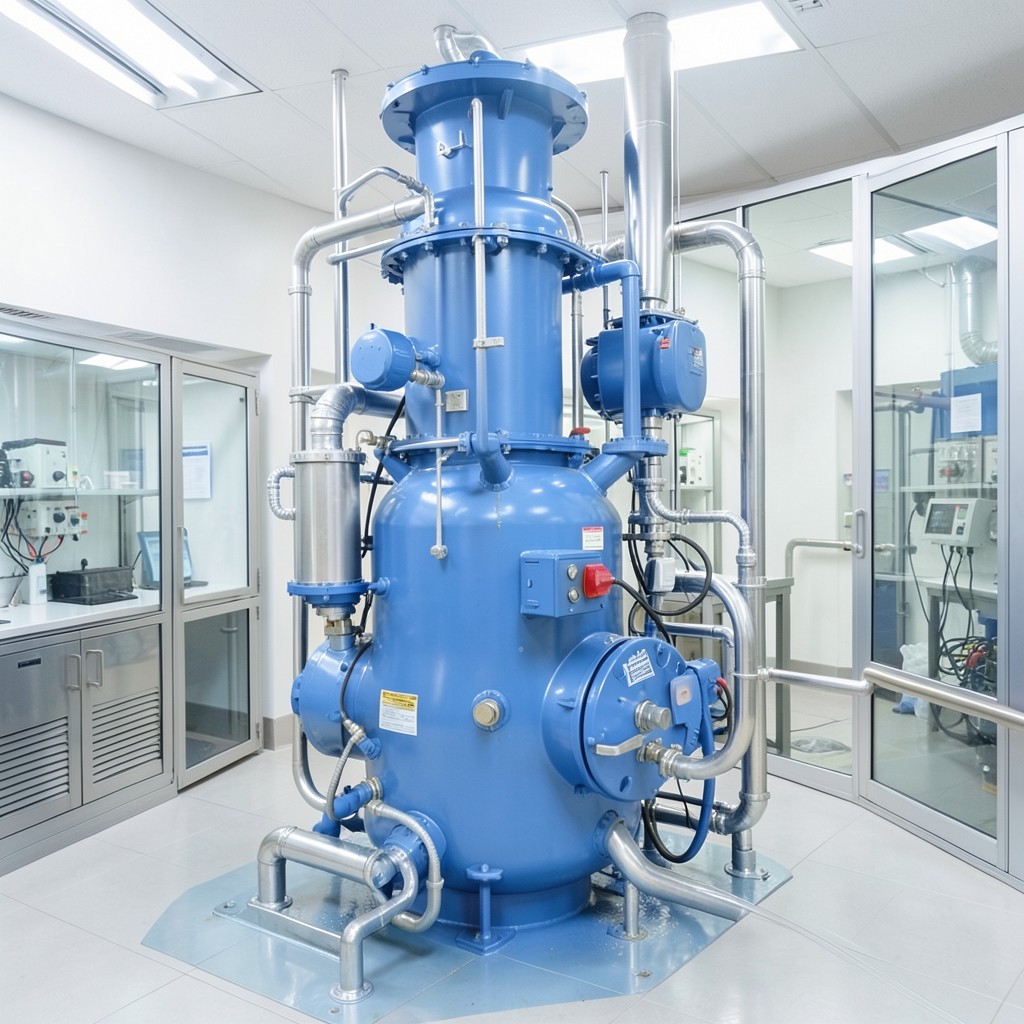

Explosion‑Proof Boiler for Paint & Coating Plants
In high‑risk environments such as a paint and coating factory, steam generation must be both reliable and intrinsically safe. Our explosion‑proof boiler is engineered specifically for the stringent demands of coating lines, providing continuous steam while eliminating ignition sources. Designed for easy integration, the unit meets global safety standards and can be customized for capacities ranging from 500 kg/h to 5 t/h, ensuring optimal performance across small batch operations and large‑scale production facilities.
Real‑World Application Scenarios
Paint and coating processes rely on steam for curing, pigment dispersion, and solvent recovery. Our boiler excels in the following settings:
- Continuous curing ovens where temperature stability is critical.
- Solvent recovery units that operate under volatile organic compound (VOC) regulations.
- Batch spray booths that require rapid start‑up and shut‑down cycles.
- Heat‑treated pretreatment lines where rapid temperature changes are common.
Key Benefits & Features
Intrinsic safety: The pressure vessel and all external fittings are classified as ATEX Zone 1/2 and IECEx compliant, removing any spark‑generation risk.
Rapid response: Modulating burner control delivers steam pressure adjustments within 30 seconds, ideal for fluctuating line speeds.
Energy efficiency: Condensing technology recovers latent heat, reducing fuel consumption by up to 15 % versus conventional boilers.
Low maintenance: Corrosion‑resistant stainless steel (316L) and modular heat‑exchange panels enable quick on‑site servicing.
Scalable design: Units are available with dual‑fuel capability (natural gas or oil) and can be configured for either vertical or horizontal installation.
Technical Specification Snapshot
| Parameter | Typical Range | Customizable Options |
|---|---|---|
| Steam Generation Capacity | 500 kg/h – 5 t/h | Stepwise increments of 250 kg/h |
| Design Pressure | 2.5 MPa (gauge) | Up to 4 MPa on request |
| Fuel Types | Natural gas, Light oil | Dual‑fuel, Biogas, LPG |
| Control System | PLC with HMI | SCADA integration, Remote monitoring |
| Certifications | ATEX, IECEx, CE | ISO 9001, ISO 14001 |
| Typical Lead Time | 15‑45 days | Expedited (10 days) on request |
Industry Certifications & Safety Assurance
Our explosion‑proof boiler carries the full suite of certifications required for operation in hazardous environments. The unit conforms to ATEX Directive 2014/34/EU (Category 2, Zones 0‑2) and IECEx certification, guaranteeing that all electrical and thermal components are intrinsically safe. In addition, the boiler is CE‑marked and built under an ISO 9001 quality‑management system, providing traceability from material procurement to final acceptance testing. Third‑party inspection reports are supplied with every shipment.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑size boiler?
We produce boilers to order, so the MOQ is one fully configured unit. Engineering, tooling, and certification costs are included in the price of the first unit, making it viable for both pilot projects and full‑scale deployments.
Can the boiler be adapted to run on alternative fuels such as biogas?
Yes. The combustion chamber and burner system are designed for dual‑fuel operation. Upon request, we provide a biogas‑compatible nozzle and adjust the control software to optimize flame stability and emissions.
What warranty and after‑sales support are included?
Every boiler ships with a 24‑month parts warranty and optional 3‑year extended coverage. Our global service network offers on‑site commissioning, routine maintenance contracts, and a 24‑hour spare‑parts hotline.
How long does it take to receive a fully tested unit?
Standard production lead time is 15‑45 days after receipt of the purchase order and final design approval. Expedited programs are available for critical projects, with delivery in as few as 10 days.
Take the Next Step
Ready to equip your coating line with a safe, efficient steam source? Contact our technical sales team today to discuss capacity, fuel options, and site‑specific integration.
