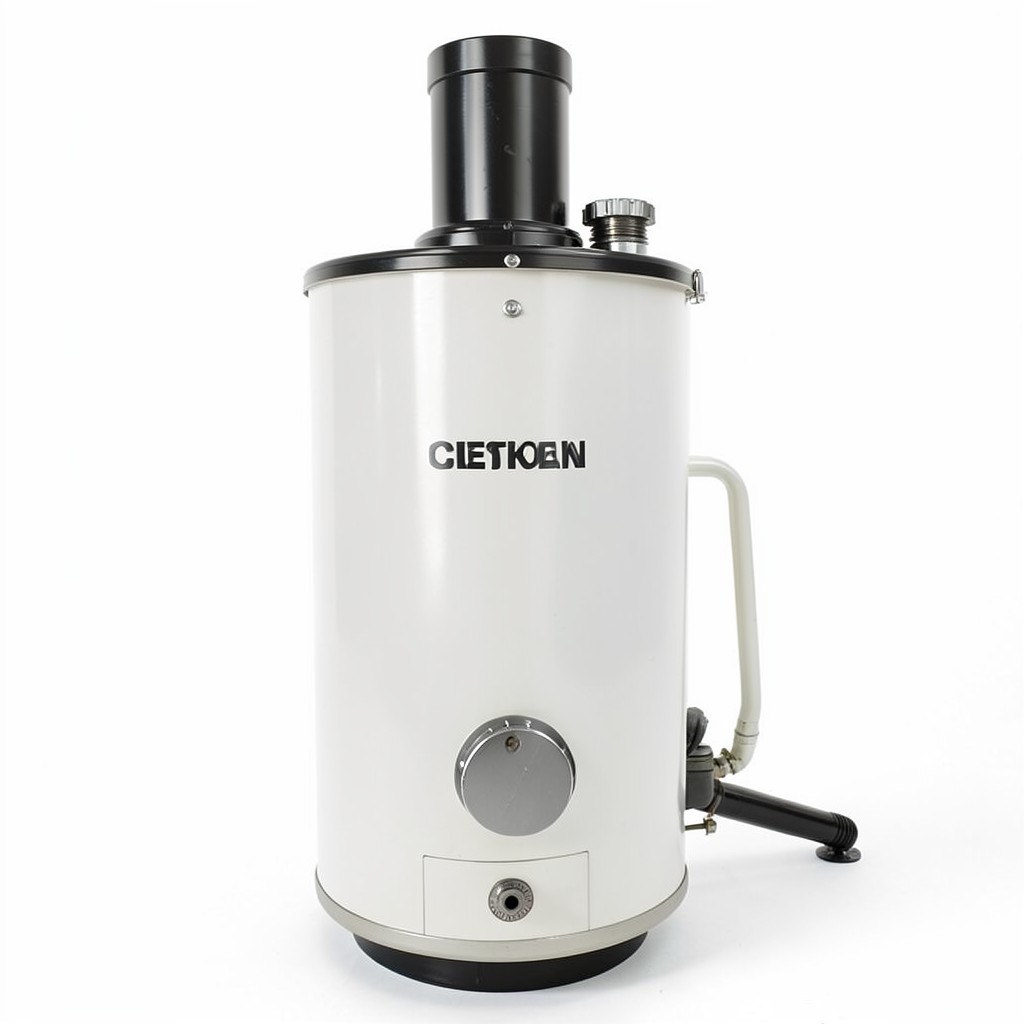

Vertical Small Capacity Clean Steam Boiler – High‑Efficiency Solution for Precise Processes
Product Overview
The vertical small capacity clean steam boiler is engineered for applications where space is limited but steam purity and rapid response are critical. Designed with a compact footprint, this boiler delivers clean, dry steam at capacities ranging from 5 kg/h to 30 kg/h, making it ideal for laboratory, pharmaceutical, food‑processing, and electronics manufacturing lines. Because procurement decisions hinge on total cost of ownership, our transparent vertical small capacity clean steam boiler price includes standard accessories, certification compliance, and optional OEM customizations.
Application Scenarios
- Pharmaceutical batch reactors – requires steam at ≤ 5 ppm total dissolved solids.
- Food‑service equipment – short‑run sterilization where quick start‑up saves cycle time.
- Electronics assembly – moisture‑free steam for solder reflow and cleaning.
- Research laboratories – precise temperature control for analytical instruments.
Technical Specifications (customizable per order)
| Parameter | Standard Range | Optional Upgrade |
|---|---|---|
| Steam Output | 5 – 30 kg/h | Up to 45 kg/h (with reinforced frame) |
| Operating Pressure | 0.2 – 1.2 MPa | Up to 2.0 MPa (optional safety valve set) |
| Heat Source | Electric (2 kW – 12 kW) | Oil‑fired (up to 15 kW) or Gas‑fired (up to 20 kW) |
| Thermal Efficiency | ≥ 95 % | ≥ 98 % with condensing heat exchanger |
| Duty Cycle | Continuous (24 h) or Intermittent (≤ 30 min on/off) | High‑duty (≥ 90 % annual runtime) |
| Footprint | 430 mm × 430 mm × 800 mm (L × W × H) | Custom panel dimensions available |
Industry Certifications & Safety
Our vertical small capacity clean steam boiler conforms to the most stringent international standards. The unit is CE marked and meets the requirements of ASME Boiler & Pressure Vessel Code (Section I). All electrical components are certified to IEC 60335‑2‑31, and the steam generation system complies with ISO 9001:2015 quality management procedures. Built‑in safety features include a dual‑redundant pressure relief valve, automatic low‑water cutoff, and an over‑temperature sensor that shuts down the heater within 2 seconds of deviation.
FAQ – Purchasing & Support
What is the minimum order quantity (MOQ) for a customized vertical small capacity clean steam boiler?
Our standard catalog models can be shipped with an MOQ of 1 unit. For bespoke designs—such as specific pressure ratings, alternative fuel options, or unique control panels—the MOQ is typically 5 units to ensure tooling efficiency.
Can the boiler be adapted to my plant’s existing control system?
Yes. The boiler features an open‑protocol (Modbus‑RTU) interface as standard, and we can integrate proprietary PLC or SCADA protocols on request. Our engineering team works with you during the design phase to map I/O points and confirm communication reliability.
How does the vertical small capacity clean steam boiler price compare with horizontal models?
Because the vertical layout eliminates the need for a separate frame and reduces material usage, the base price is typically 10‑15 % lower than comparable horizontal units of the same capacity. The savings are further enhanced when you select the electric heating option, which has lower installation costs.
What warranty and after‑sales support are provided?
All boilers ship with a 24‑month comprehensive warranty covering parts, labor, and on‑site commissioning. Our global service network offers 24 h technical hot‑line support and can dispatch a certified technician within 48 hours to most major industrial regions.
Ready to Optimize Your Steam Process?
Contact our sales engineering team today for a quotation tailored to your specific capacity, duty cycle, and compliance requirements. We will provide a detailed quote, lead‑time estimate, and a clear breakdown of the vertical small capacity clean steam boiler price so you can make an informed procurement decision.
Email us now or call +1‑800‑555‑0199 to discuss your project.
