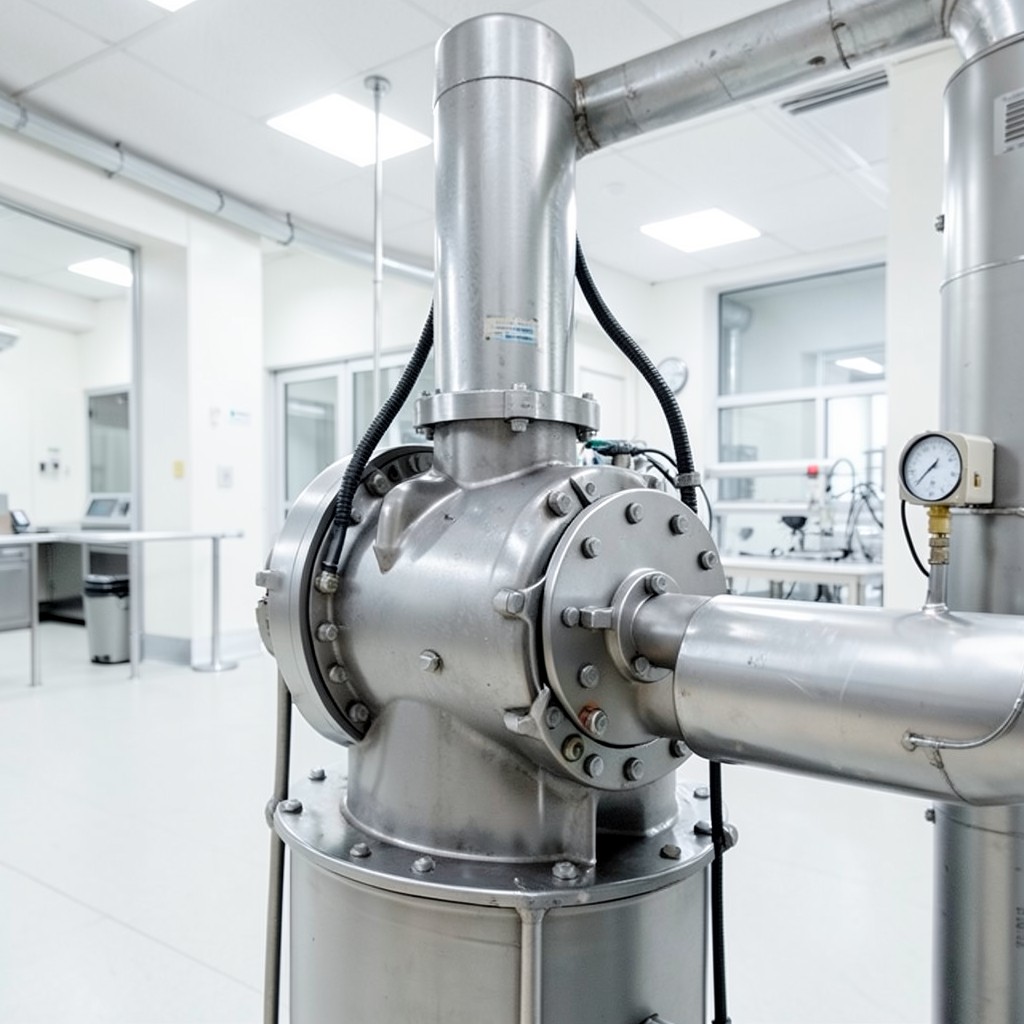

Industrial‑Grade Safety Valve for High Pressure Coal Steam Boiler
Our safety valve for high pressure coal steam boiler is engineered to protect plant assets and personnel by reliably releasing excess steam pressure in demanding coal‑fired environments. Designed for continuous operation, the valve meets the stringent reliability standards of utility‑scale power stations, petrochemical complexes, and large‑capacity industrial boilers.
Where the Valve Performs Best
The valve is the logical choice for:
- Coal‑fired steam generators operating at 10–25 MPa (1500–3600 psi).
- Units with rapid load changes where pressure spikes are frequent.
- Facilities that must comply with ASME Section I and IEC 61511 safety‑instrumented system requirements.
- Retrofits and new builds where space is limited and a compact, robust design is essential.
Product Overview
The valve combines a full‑bore, pop‑pet design with a hardened‑steel spring and a precision‑machined disc. The body is forged from ASTM A105 carbon steel, heat‑treated to withstand cyclic stresses, and coated with a high‑temperature, corrosion‑resistant alloy that tolerates the aggressive flue‑gas chemistry of coal combustion. An integral relief chamber eliminates water hammer, while the optional pilot‑assist module provides fine pressure control for modern automated boiler control systems.
Technical Snapshot (customizable per order)
| Parameter | Typical Range | Units |
|---|---|---|
| Design Pressure | 10 – 25 | MPa |
| Set‑pressure Accuracy | ±0.5 % of set‑point | – |
| Maximum Operating Temperature | 540 | °C |
| Flow Capacity (full opening) | 2 500 – 12 000 | kg/h |
| Material (body) | ASTM A105 / SA-387 | – |
| Certification | ASME Section I, PED 2014/68/EU, CE | – |
Competitive Edge
Compared with standard relief devices, our valve delivers:
- Long‑life spring technology: Tested for >10⁷ cycles without loss of set‑pressure.
- Compact footprint: 30 % smaller than comparable models, easing installation in crowded boiler bays.
- Enhanced corrosion resistance: Dual‑layer coating exceeds ISO 12944‑5 requirements for sulphur‑rich flue gases.
- Fast, on‑site servicing: Quick‑release fasteners allow valve removal in under 30 minutes, reducing downtime.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for custom‑rated units?
We accept orders from a single unit for prototype or trial applications. For full‑scale production runs, the typical MOQ is 10 pieces, allowing you to benefit from volume pricing while keeping inventory manageable.
Can the set‑pressure be adjusted after shipment?
Yes. The valve incorporates a threaded adjusting screw that can be calibrated on‑site within the ±0.5 % tolerance stated in the specifications. A calibration certificate is provided with every unit.
What lead time should I expect?
Standard models ship within 15–30 days after order confirmation. For bespoke material grades or special certifications, the lead time extends to 45 days, subject to engineering approval.
Do you offer warranty or after‑sales support?
All safety valves are covered by a 24‑month manufacturer warranty covering material and workmanship. Our technical team is available 24 × 7 for troubleshooting, spare‑part supply, and on‑site assistance.
