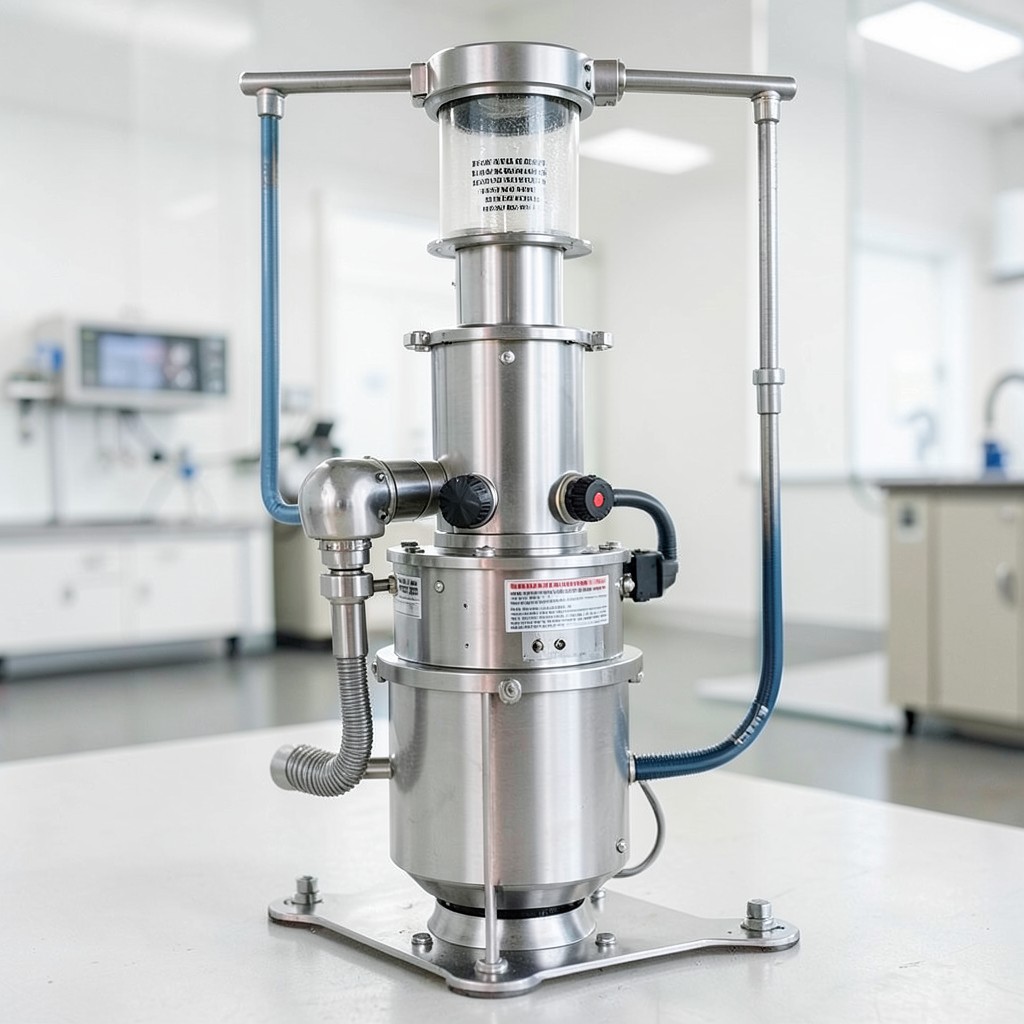

Our premix hydrogen burner for low NOx emissions is engineered to deliver clean, high‑temperature heat while meeting the strict environmental targets of modern process plants. By premixing hydrogen with air in a precisely controlled manifold, the burner achieves ultra‑stable flames and reduces nitrogen‑oxide formation to single‑digit ppm levels—ideal for steel reheating, glass melting, and chemical synthesis where both performance and compliance matter.

The unit integrates seamlessly into existing furnace or boiler systems, offering modular scalability, fast start‑up, and a duty cycle up to 95 % without compromising emission limits. Designed for global distributors and OEM partners, it can be customized to match specific inlet pressures, flame geometry, and control interfaces.

How It Works – Premixed Combustion Technology

The burner employs a dual‑stage mixing chamber where hydrogen is blended with pre‑heated air at a controlled ratio (typically 5–20 % H₂ by volume). This premix eliminates rich‑fuel pockets that normally generate high NOx during ignition. An advanced swirl‑inducing nozzle creates a uniform flame front, promoting complete oxidation at lower peak temperatures. The result is a stable, low‑velocity flame that delivers the required thermal output while keeping NOx below 15 ppm (measured at 15 % O₂).

Integrated sensors continuously monitor pressure, flow, and exhaust composition, feeding data to a PLC‑based controller that automatically adjusts the mix to maintain optimal efficiency. The system is compatible with standard H₂ supply lines (up to 10 bar) and can be linked to existing DCS/SCADA platforms via Modbus/TCP or Profibus.

Typical Specifications (customizable per order)

certified hydrogen conversion burner for steam boilers

All data are typical values; engineering teams can adjust dimensions, control logic, and flame geometry to meet project‑specific requirements.

Application Scenarios – Where Low‑NOx Hydrogen Burners Add Value

• Steel reheating furnaces – reduces NOx‑related permits and improves product surface quality.
• Glass melting tanks – stable flame allows precise temperature control, lowering scrap rates.
• Chemical reactors – hydrogen‑rich environments benefit from low‑NOx operation to avoid catalyst poisoning.
• Waste‑to‑energy boilers – meets stringent local emission limits while using green hydrogen as fuel.
• Marine auxiliary boilers – ATEX‑certified units enable safe installation on offshore platforms.

In each case the premix hydrogen burner for low NOx emissions delivers a compact footprint, rapid commissioning, and a predictable operating cost profile that aligns with ESG targets and regulatory compliance.

FAQ – Technical & Procurement Questions

What is the minimum order quantity (MOQ) for a custom‑engineered unit?

We accept single‑unit orders for prototype or pilot‑plant applications. Volume pricing and lead‑time improvements become available from a batch of 5 units onward.

Can the burner be integrated with existing PLC or DCS systems?

Yes. The standard controller supports Modbus/TCP, Profibus DP, and OPC-UA. Custom I/O maps are provided upon request.

How does the premix hydrogen burner for low NOx emissions achieve its performance?

By premixing hydrogen with pre‑heated air in a high‑precision manifold, the flame temperature is kept just above the ignition point, preventing the high‑temperature zones that generate nitrogen oxides. Real‑time sensor feedback fine‑tunes the mixture, guaranteeing both low emissions and high thermal efficiency.

What warranty and after‑sales support are offered?

All units ship with a 24‑month limited warranty covering manufacturing defects. Our global service network provides on‑site commissioning, routine calibration, and spare‑part logistics. Extended service contracts can be arranged for critical‑path installations.
