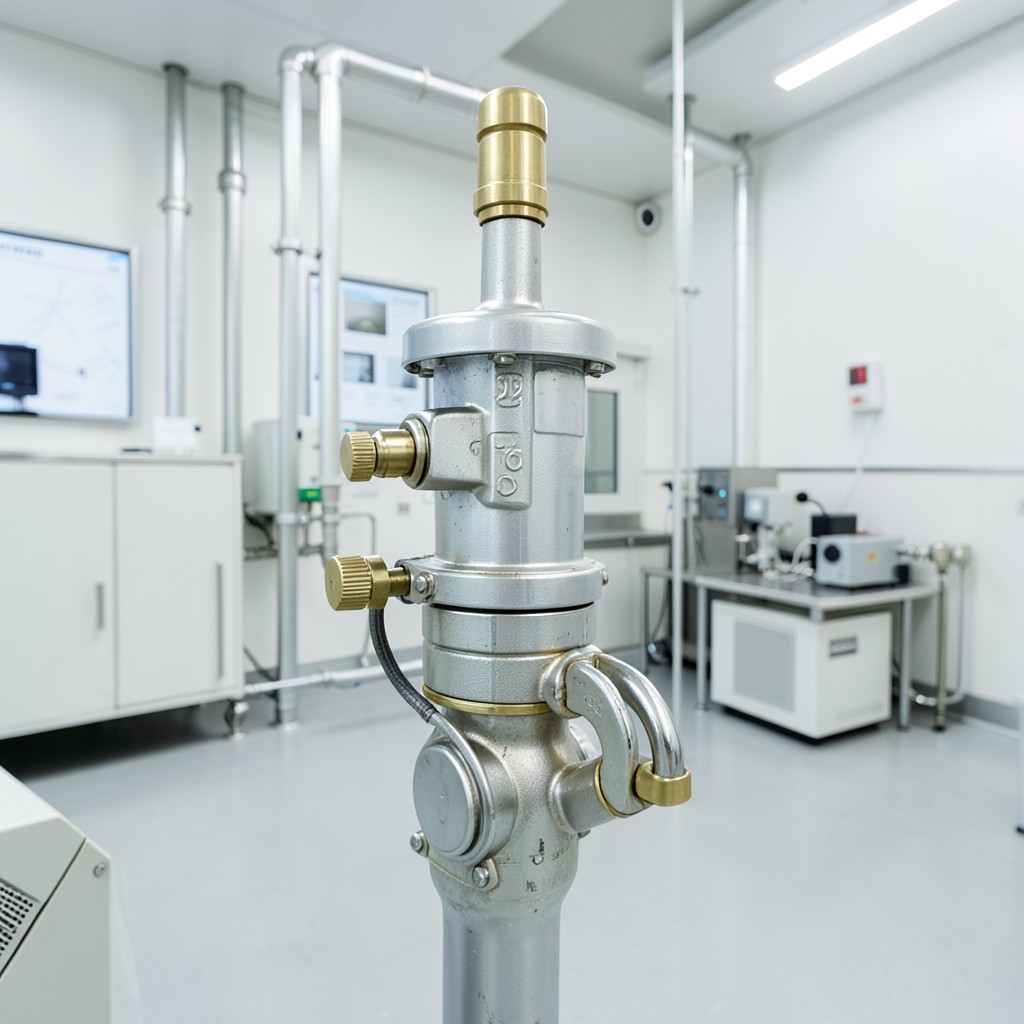

Safety Relief Valve for Pure Hydrogen Steam Lines
Our safety relief valve for pure hydrogen steam lines is engineered to protect high‑pressure hydrogen‑steam circuits from over‑pressure events while maintaining material integrity in the most demanding environments. Designed for refineries, electrolyzers, and hydrogen‑fuel production plants, the valve offers rapid response, leak‑tight sealing, and compliance with global pressure‑equipment directives.
Application Scenarios
Hydrogen‑steam systems operate under extreme temperatures (up to 500 °C) and pressures (up to 30 MPa). Our valve is trusted in the following contexts:
- Electrolyzer stacks where rapid pressure spikes can damage membranes.
- Steam‑reforming units feeding synthesis gas to downstream reactors.
- Hydrogen‑fuel cell test rigs requiring precise pressure control.
- Hydrogen storage stations that integrate steam‑heated release lines.
Each installation benefits from the valve’s ability to vent excess pressure without contaminating the pure hydrogen stream, preserving product purity and system efficiency.
Technical Specifications
The following table outlines the typical performance envelope. All parameters are fully customizable to match project‑specific design data.
| Parameter | Typical Range | Units |
|---|---|---|
| Set Pressure | 2 – 30 | MPa |
| Operating Temperature | 150 – 500 | °C |
| Flow Capacity (Cv) | 0.5 – 12 | (dimensionless) |
| Construction Material | 316L SS, Hastelloy C‑276, Inconel 718 | – |
| Connection Type | Flanged, Threaded, Butt‑weld | – |
| Response Time | ≤ 10 ms | – |
| Leakage Rate | ≤ 0.1 % of rated flow | – |
If your project requires a pressure rating beyond 30 MPa, a larger or dual‑stage design can be engineered on request.
Competitive Advantages
What sets our valve apart from generic pressure‑relief solutions?
- Hydrogen‑compatible alloys eliminate embrittlement, extending service life beyond 10 years in continuous operation.
- Zero‑leak seal technology utilizes metal‑to‑metal seating with PTFE‑free gaskets, guaranteeing product purity.
- Modular design enables quick field swaps without shutting down the entire line.
- Fast engineering support – our in‑house pressure‑vessel specialists provide 24‑hour design reviews.
The result is a reduction in total‑ownership cost, lower maintenance downtime, and compliance assurance for critical hydrogen infrastructure.
Industry Certifications & Safety
Our products meet or exceed the most stringent standards for pressure equipment handling flammable gases:
- ASME Section VIII Division 1 & 2 certification
- EU Pressure Equipment Directive (PED) 2014/68/EU
- ISO 9001:2015 quality management
- ISO 14001 environmental compliance
- ATEX II 2G Ex‑d (for hazardous areas)
Documentation—including material test reports, design calculations, and CE marking files—is supplied with every order to streamline your own certification processes.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑engineered valve?
We accept single‑piece prototypes for engineering validation. Standard production runs start at 5 units, but larger volumes (≥ 50) qualify for price breaks.
Can the valve be tailored for pressures above the typical 30 MPa range?
Yes. Our design team can develop high‑pressure variants up to 70 MPa using reinforced housings and larger spring‑loads. Lead time for such custom work is 6–8 weeks.
What warranty and after‑sales support are provided?
All valves ship with a 24‑month limited warranty covering material defects and workmanship. Ongoing support includes on‑site troubleshooting and a 7‑day spare‑parts guarantee.
How does this product differ from a generic safety valve for hydrogen steam lines?
Our safety relief valve for pure hydrogen steam lines uses hydrogen‑resistant alloys, a leak‑tight metal seat, and is fully certified for ATEX zones—features that generic valves typically lack.
Request a Quote or Technical Consultation
Our engineers are ready to help you select the optimal solution for your hydrogen‑steam system.
