Optimized Waste Heat Recovery for Hydrogen Boiler Stacks

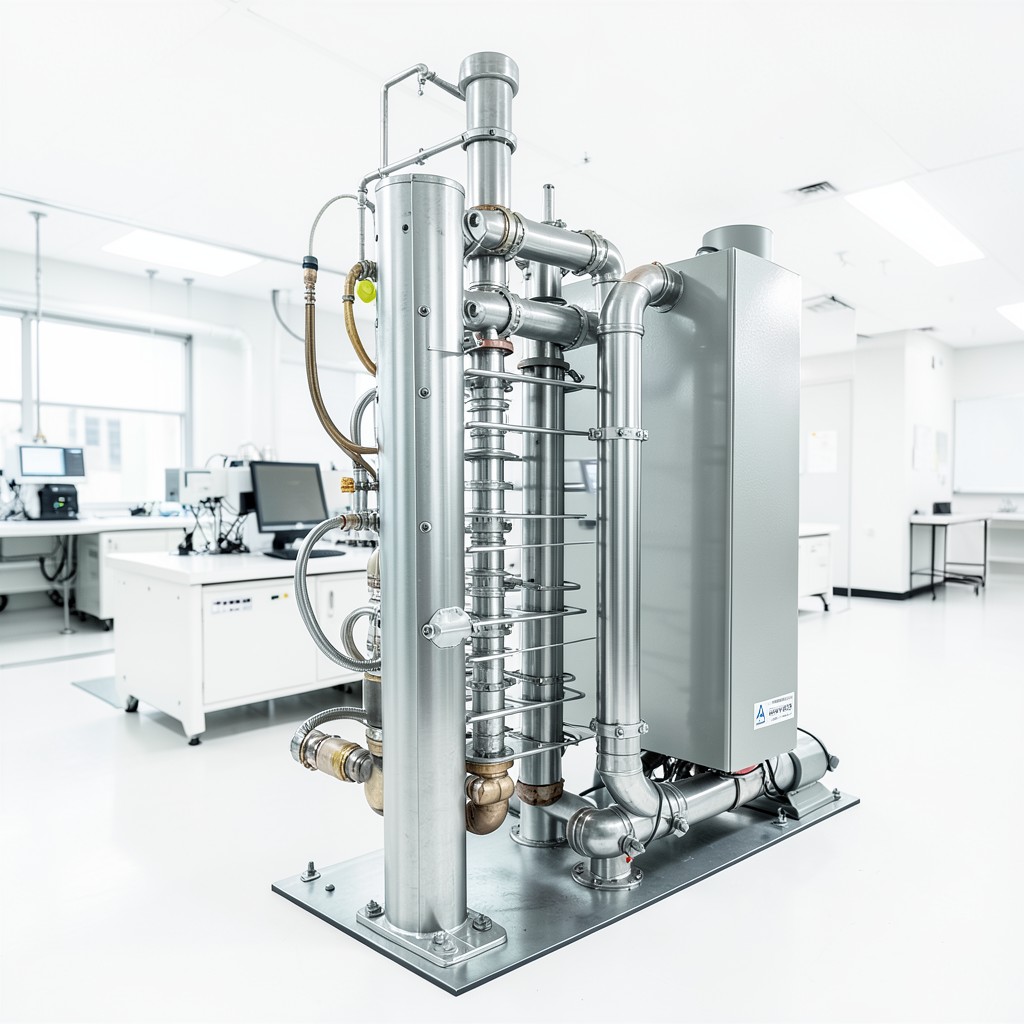

The waste heat recovery unit for hydrogen boiler stack is engineered to capture residual thermal energy from high‑temperature hydrogen combustion and convert it into usable steam or hot water. By integrating this unit directly onto the boiler stack, plant operators achieve measurable fuel savings, lower CO₂ emissions, and improved overall plant efficiency without compromising system reliability.
Where It Adds Value
Hydrogen‑fired boiler installations are expanding across petrochemical complexes, steel mills, and large‑scale power generation sites. In these environments, the exhaust gas temperature often exceeds 450 °C, representing untapped energy. Our recovery unit is suited for:
- Continuous‑process plants requiring steady‑state heat reclamation.
- Facilities with variable load cycles where rapid start‑up and shutdown are common.
- Projects seeking to meet stringent sustainability targets or carbon‑price regulations.
How the Unit Operates
The system employs a counter‑flow heat‑exchange matrix built from high‑grade stainless steel (or alloy 625 on request). Exhaust gases flow over the matrix while the working fluid—typically water or a glycol‑based solution—circulates in the opposite direction, maximizing temperature gradient and heat transfer efficiency. An integrated temperature‑controlled bypass valve automatically modulates flow to protect downstream equipment during low‑load conditions.
Key process steps:
- Exhaust gas enters the inlet diffuser, reducing velocity and turbulence.
- Heat is transferred through the finned tubes to the secondary fluid.
- Recovered thermal energy is directed to a steam generator, district‑heat network, or feed‑water pre‑heater.
- Cleaned exhaust exits via a stainless‑steel stack, meeting emission limits.
Typical Specifications (customizable per order)
| Parameter | Range | Typical Value | Notes |
|---|---|---|---|
| Design Heat Duty | 0.5 – 5 MW | 2 MW | Scalable modules available. |
| Inlet Gas Temperature | 350 – 600 °C | 450 °C | Compatible with standard hydrogen boiler stacks. |
| Maximum Operating Pressure (fluid) | 10 – 30 bar | 15 bar | Options for higher‑pressure steam cycles. |
| Thermal Efficiency | 70 – 85 % | 78 % | Depends on inlet temperature and flow rate. |
| Materials | AISI 316L, Alloy 625, Duplex | AISI 316L | Corrosion‑resistant for moist hydrogen exhaust. |
Competitive Edge
• Modular design – Units can be linked in series or parallel to meet expanding plant capacity without major civil works.
• Rapid commissioning – Factory‑tested modules arrive with pre‑aligned manifolds, reducing on‑site integration time to under two weeks.
• Robust material selection – Certified for hydrogen‑rich environments, meeting EN 13345 and ASME Section VIII requirements.
• Smart control interface – PLC‑compatible HMI provides real‑time temperature, flow, and efficiency data, facilitating integration with existing DCS systems.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑designed unit?
Our standard catalog models are available from a single unit. For fully bespoke designs, the MOQ is typically three modules to justify engineering and tooling costs, but we evaluate each request individually.
Can the heat recovery unit be adapted to different fluid media?
Yes. While water and glycol solutions are the default, we can supply stainless‑steel or Hastelloy‑lined circuits for oil, low‑boiling organic fluids, or pressurized steam, based on project specifications.
What lead time should I expect after placing an order?
Standard models ship within 15‑30 days after receipt of purchase order and engineering approval. Fully custom configurations typically require 30‑45 days, depending on material selection and testing scope.
Is there a warranty and what does it cover?
All units carry a 24‑month warranty covering material defects and workmanship. Extended service contracts are available, including on‑site calibration and spare‑part provisioning.
Ready to Capture Lost Energy?
The waste heat recovery unit for hydrogen boiler stack delivers a proven pathway to higher plant efficiency and lower operating costs. Contact our engineering team today to discuss sizing, material options, and integration timelines.
