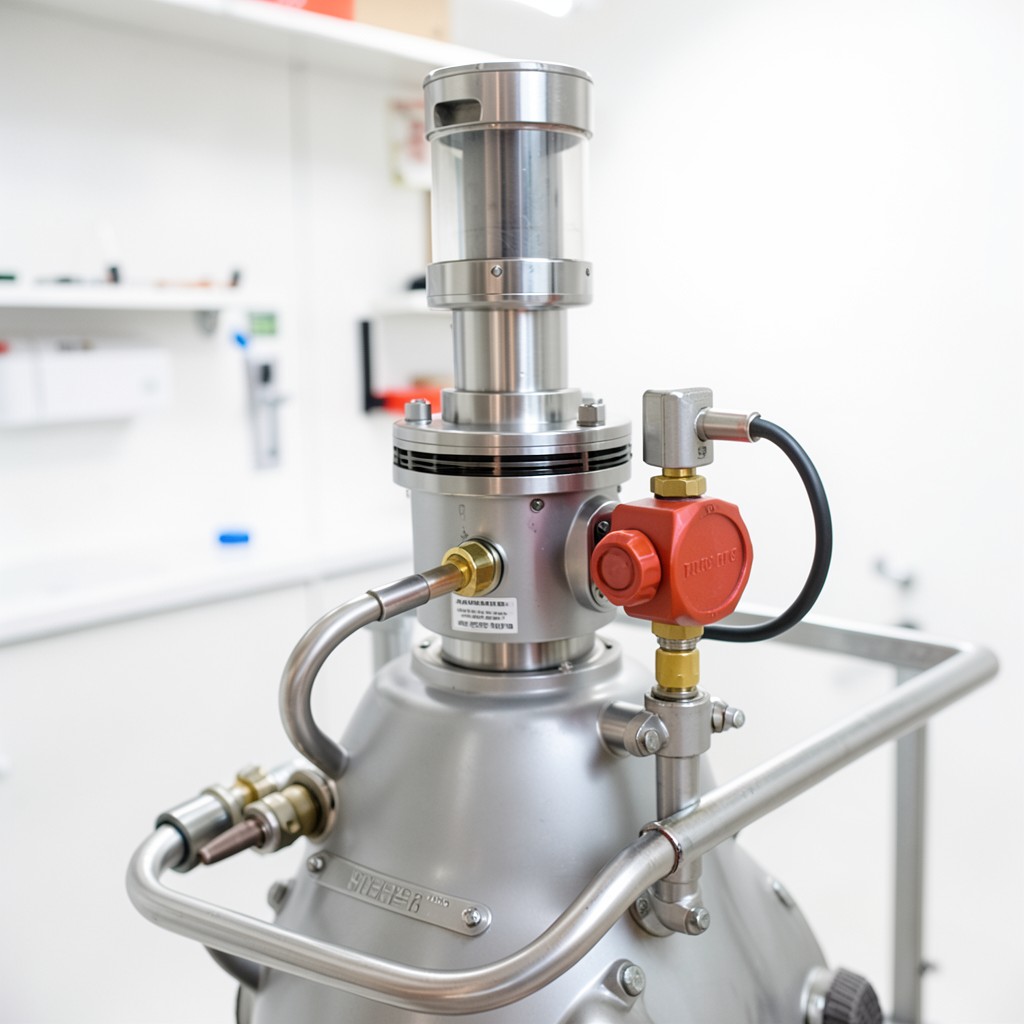

Marine Boiler High Steam Pressure Trip Switch – Critical Safety Control for Shipboard Boilers
The marine boiler high steam pressure trip switch is a purpose‑engineered safety device designed to protect shipboard steam generators from over‑pressure conditions that could jeopardise crew safety, equipment integrity, and regulatory compliance. Integrated directly into the boiler control panel, the switch monitors real‑time steam pressure and instantly isolates the heating source when preset limits are exceeded, preventing catastrophic failure and minimizing downtime for marine vessels ranging from coastal ferries to offshore support ships.
How It Works – Reliable Protection in Three Simple Steps
1. Continuous Pressure Monitoring: A high‑precision piezoresistive sensor detects steam pressure within the boiler drum, delivering data to the switch’s micro‑controller at a 10 ms response interval.
2. Instantaneous Trip Logic: When pressure surpasses the user‑defined setpoint (typically 1.5 × design pressure), the built‑in comparator triggers a mechanical latch that opens the control circuit within 15 ms.
3. Fail‑Safe Reset: The device incorporates a self‑holding mechanism that maintains the open state until manual reset after thorough inspection, ensuring that the boiler cannot restart under unsafe conditions.
The switch is housed in a corrosion‑resistant stainless‑steel enclosure (grade 316L) with IP68 sealing, guaranteeing reliable operation in humid, salty marine environments and complying with classification societies such as ABS and DNV‑GL.
Application Scenarios – Where the Device Delivers Value
- Auxiliary boilers on cargo vessels where rapid load changes can cause pressure spikes.
- Steam‑driven propulsion plants on cruise ships requiring continuous safety monitoring.
- Fire‑fighting water‑spray systems on tankers that rely on high‑pressure steam generation.
- Offshore platform support vessels operating under variable sea‑state pressures.
In each case, the marine boiler high steam pressure trip switch provides a deterministic safety barrier that aligns with International Maritime Organization (IMO) regulations and the Safety of Life at Sea (SOLAS) standards, allowing ship owners to demonstrate compliance during audits and classification inspections.
Typical Specifications (customizable per order)
| Parameter | Range / Options | Default |
|---|---|---|
| Rated Pressure (max) | 0.5 – 3.0 MPa | 1.5 MPa |
| Trip Set‑point Accuracy | ±0.5 % of setpoint | ±0.5 % |
| Operating Temperature | -20 °C to +85 °C | -20 °C |
| Enclosure Material | 316L Stainless Steel, Aluminum (optional) | 316L SS |
| Ingress Protection | IP68 | IP68 |
| Electrical Rating | 24 V DC / 110 V AC | 24 V DC |
| Mounting Style | Panel‑mount, DIN‑rail (optional) | Panel‑mount |
All parameters can be tailored to the vessel’s design pressure, control voltage, and space constraints. Our engineering team works directly with shipyards and equipment integrators to deliver a switch that fits existing schematics without costly redesign.
Industry Certifications & Safety Compliance
The device is manufactured under ISO 9001:2015 quality management and undergoes CE marking procedures to meet the European Machinery Directive. Additional certifications include:
- ABS / DNV‑GL classification approval for marine safety equipment.
- ATEX Zone 2 certification for use in potentially explosive steam environments.
- RoHS compliance for restricted substances.
Test reports (type‑tested and batch‑tested) are provided with each shipment, enabling fast documentation during flag state inspections.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑set pressure trip switch?
Our standard MOQ is 20 units for a specific pressure set‑point. For larger shipbuilding programs, we can accommodate bulk orders of 100 + units with tiered pricing.
Can the set‑point be adjusted after installation?
Yes. The switch features a calibrated potentiometer accessible from the front panel, allowing authorized personnel to fine‑tune the trip pressure within the certified range without removing the unit.
What is the typical lead time for a first‑time order?
Standard lead time is 15–45 days depending on the complexity of the customization and current production schedule. Rush orders can be accommodated with an additional surcharge.
Do you offer warranty and after‑sales support?
All units ship with a 24‑month limited warranty covering material and workmanship. Technical support is available 24 hours a day, 7 days a week via phone or email, and we provide on‑site troubleshooting for critical installations.
Ready to secure your boiler system with a proven safety solution?
Contact Our Engineering Team Today
