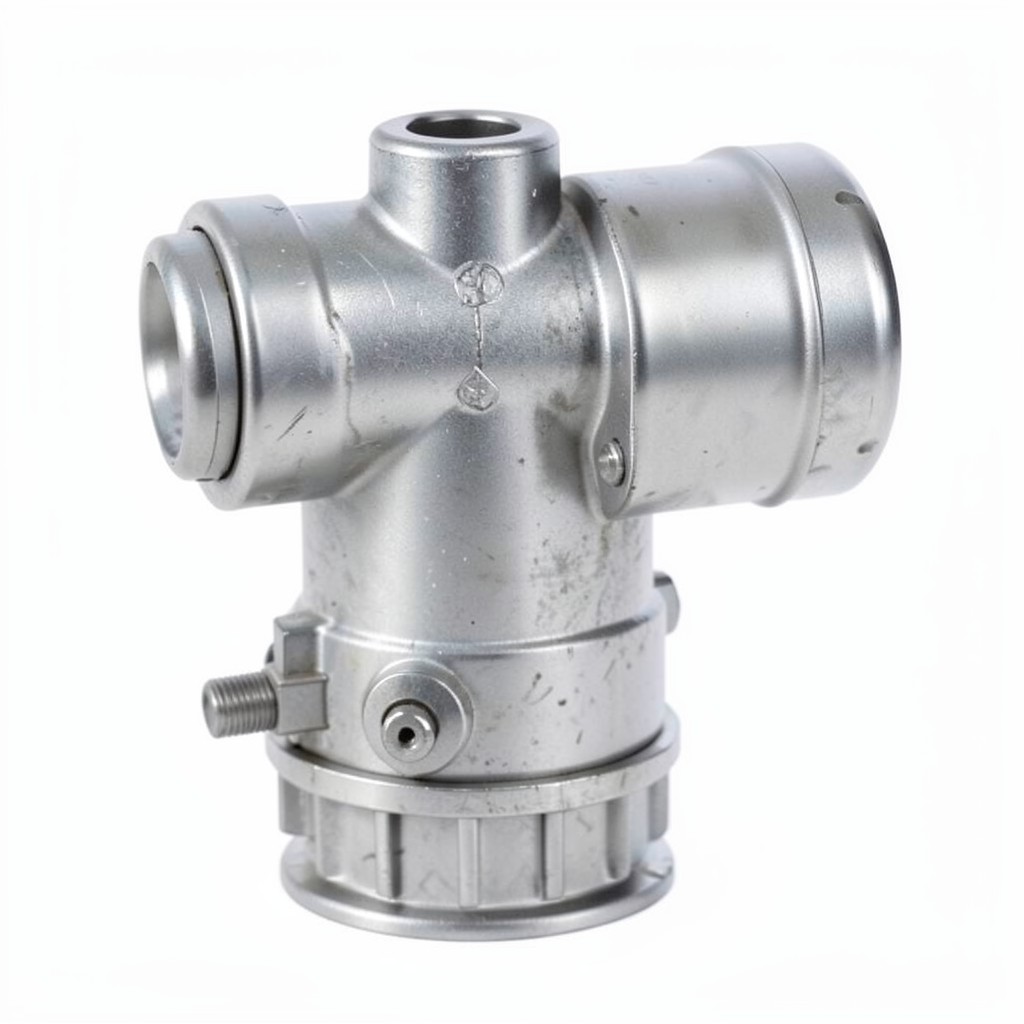

Marine Boiler Scum Valve Right Angle Type – Reliable Scale‑Removal Solution
In marine propulsion and auxiliary systems, maintaining clean boiler water is critical for efficiency and safety. Our marine boiler scum valve right angle type provides a compact, high‑performance means to discharge scum and non‑condensable gases from the steam drum without interrupting operation. Designed for the harsh marine environment, the right‑angle configuration fits tight pipe runs and simplifies integration into existing boiler loops.
How It Works – Simple Yet Robust Operation
The valve features a spring‑loaded pop‑petcock that automatically opens when steam pressure exceeds the preset set‑point, allowing accumulated scum to be expelled through the angled outlet. When pressure falls below the threshold, the spring forces the seat shut, preventing back‑flow and maintaining system integrity. The right‑angle design minimizes pipe length, reduces pressure drop, and eliminates the need for additional elbows or fittings.
Technical Specifications (Customizable per Order)
| Parameter | Typical Range | Notes |
|---|---|---|
| Valve Body Material | Carbon steel (ASTM A105) / Stainless steel (ASTM A351) | Select based on corrosion level |
| Size (DN) | 15 – 200 | Matches standard marine pipe dimensions |
| Pressure Rating | PN 2.5 – PN 16 (≈ 250 – 1600 kPa) | Conforms to EN 13366 |
| Operating Temperature | -20 °C to +250 °C | Suitable for steam and condensate |
| Set‑point Adjustment | 0.5 – 2.0 MPa (spring‑type) | Tool‑adjustable without disassembly |
| Connection Type | Flanged, threaded, or welded | OEM/ODM options available |
Competitive Advantages – Why Choose Our Valve
- Space‑saving right‑angle layout – reduces pipework length and eases installation in crowded engine rooms.
- Self‑cleaning pop‑petcock – eliminates manual bleeding and lowers maintenance downtime.
- Robust material selection – carbon or stainless steel options meet corrosion‑resistance demands of seawater‑filled systems.
- Standard‑compliant design – conforms to EN 13366 and ABS ship‑building regulations, simplifying classification approvals.
- Customizable set‑point – spring tension can be tuned to the specific boiler pressure profile of any vessel.
- OEM/ODM flexibility – we produce to your drawing, offering branding, special finishes, and packaging per contract.
Application Scenarios
The valve is ideally suited for:
- Marine diesel‑engine auxiliary boilers where space constraints demand a compact arrangement.
- Passenger‑ship HVAC steam generators that require frequent scum removal to maintain air‑conditioning efficiency.
- Offshore platforms where corrosion‑resistant stainless versions extend service life in salt‑laden atmospheres.
- Naval vessels with high‑pressure steam cycles, benefiting from the valve’s quick‑acting discharge capability.
FAQ
What is the minimum order quantity (MOQ) for a custom‑size marine boiler scum valve right angle type?
Our standard MOQ is 10 units for a single size and material. For mixed‑size or OEM‑branded orders, we can accommodate as low as 5 units per variant, subject to tooling requirements.
Can the set‑point pressure be adjusted after installation?
Yes. The spring‑loaded mechanism is accessible from the exterior of the valve body; a qualified technician can fine‑tune the opening pressure with a simple wrench, no disassembly required.
What certifications does the valve hold?
All units comply with EN 13366 (Steam Boiler Valves) and meet ABS and Lloyd’s Register requirements for marine installations. Material certifications (ASTM, DIN) are provided on request.
What is the typical lead time?
Standard stock items ship within 15 days. Custom sizes, material upgrades, or OEM branding extend the lead time to 30–45 days, depending on order volume.
Get Your Quote Today
Ready to improve boiler efficiency and reduce maintenance costs? Contact our sales engineers for a no‑obligation quotation, technical drawing review, or sample order.
