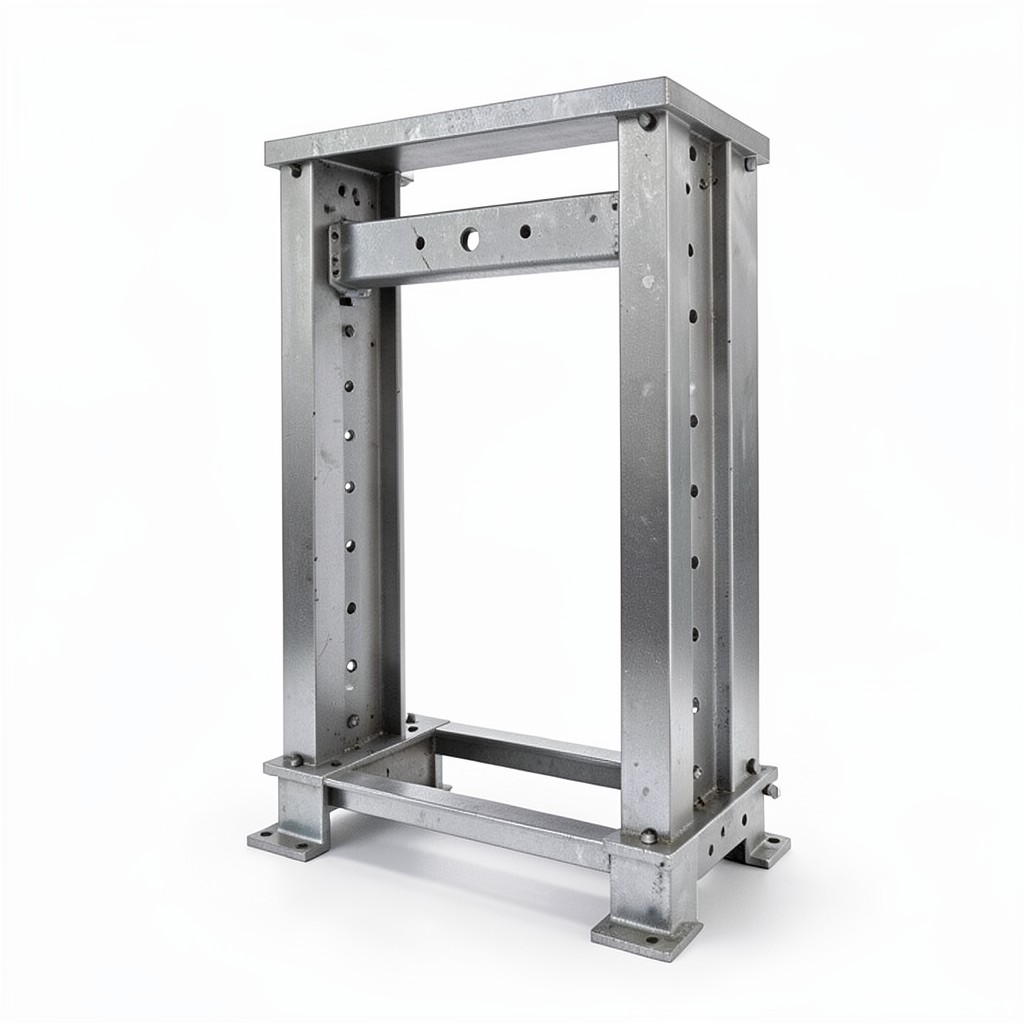

Marine Boiler Structural Steel Support Frame
Product Overview
The marine boiler structural steel support frame is engineered to secure heavy‑duty boiler units aboard vessels ranging from offshore supply ships to naval frigates. Constructed from high‑strength carbon steel with a corrosion‑resistant coating, the frame distributes static and dynamic loads evenly across the deck, protecting both the boiler and the surrounding structure. Its modular design allows for rapid installation, re‑positioning, and integration with existing marine HVAC and power systems, making it a preferred choice for shipyards, OEMs, and maritime equipment distributors worldwide.
Application Scenarios
- Offshore drilling platforms where space constraints demand compact, high‑capacity support structures.
- Naval vessels that require compliance with strict vibration‑damping standards and rapid repair cycles.
- Cruise ships and ferries where passenger comfort depends on minimizing boiler‑induced noise and movement.
- Retrofit projects for older fleets, offering a plug‑and‑play solution that meets current classification society requirements.
Technical Specifications
| Parameter | Typical Range | Units |
|---|---|---|
| Maximum Static Load | 150 – 350 | kN |
| Dynamic Load Capacity | 80 – 200 | kN |
| Material Grade | ASTM A572 Grade 50 | – |
| Coating System | Zinc‑aluminum alloy (Zincalume) + epoxy topcoat | – |
| Overall Dimensions (L×W×H) | Customizable up to 3,600 mm × 2,400 mm × 2,200 mm | mm |
| Weight (complete frame) | 1,200 – 2,800 | kg |
All dimensions and load ratings can be adjusted to match specific boiler models or vessel deck layouts. Our engineering team provides detailed stress analysis reports with every order, ensuring compliance with classification societies such as ABS, DNV‑GL, and Lloyd’s Register.
Industry Certifications & Safety
The frame is manufactured in ISO 9001‑registered facilities and undergoes third‑party inspection for compliance with IEC 60945 (Marine Equipment) and EN 1090 (Fabrication of Steel Structures). Each unit is supplied with a Certificate of Conformity, weld‑map documentation, and a full traceability record for the steel grade and coating batch. These certifications simplify the approval process during new‑build construction and periodic class surveys.
Frequently Asked Questions
What is the minimum order quantity (MOQ) for a custom‑size marine boiler structural steel support frame?
We accept single‑unit orders for prototype or low‑volume projects. For standard catalog sizes, the MOQ is one unit; for heavily customized dimensions, a MOQ of three units helps us optimize material utilization and tooling costs.
Can the frame be delivered pre‑assembled?
Yes. Our logistics team can ship the frame partially or fully assembled, depending on the shipyard’s handling capabilities. Fully assembled units are packed in reinforced containers and typically arrive within 15–45 days after order confirmation.
What warranty coverage is provided?
All frames carry a standard 24‑month warranty against material defects and coating delamination, provided installation follows the supplied guidelines. Extended warranty options are available upon request.
Is on‑site modification possible after delivery?
Minor field modifications such as drilling for tie‑down points are permitted and covered under the warranty, provided they are performed by qualified marine welders. Major structural changes require prior engineering approval.
Ready to Strengthen Your Vessel’s Boiler Installation?
Our marine boiler structural steel support frames combine proven load performance, corrosion protection, and class‑society compliance in a single, modular package. Contact our technical sales team today to discuss your specific requirements, request a CAD model, or obtain a quotation.
Email us or call +1‑800‑555‑0123 to start the conversation.
