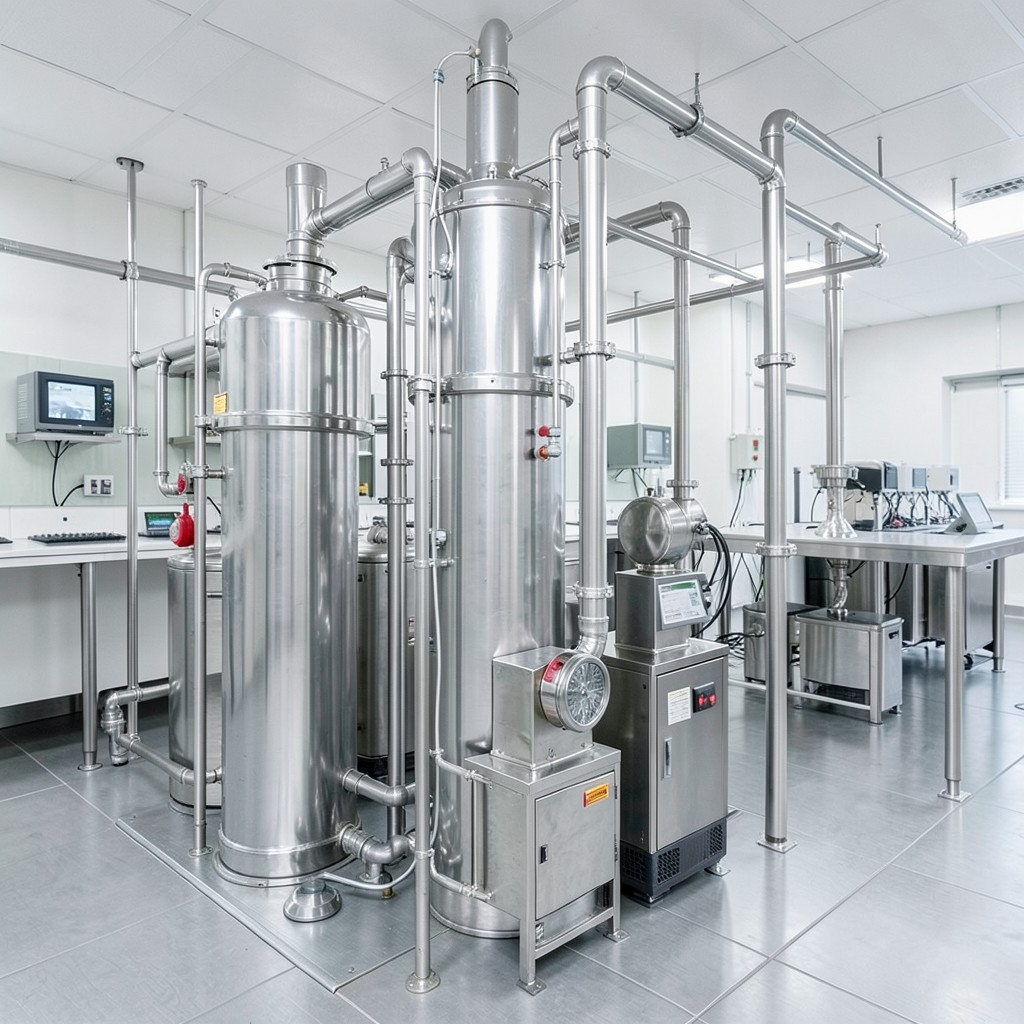

Synthetic Fiber Plant Thermal Fluid Heating System
Our synthetic fiber plant thermal fluid heating system delivers reliable, high‑efficiency heat transfer for melt‑spinning, drawing and finishing lines. Engineered to operate continuously under demanding temperature profiles, the unit circulates proprietary thermal oil through insulated pipework, ensuring uniform heat distribution while minimizing energy waste. Designed for integration into existing process loops, it supports the stringent quality standards of modern polyester, nylon and acrylic manufacturers.
Technical Overview & Core Architecture
The system combines a modular heat‑exchanger bank, precision‑controlled circulation pump, and a programmable logic controller (PLC) that monitors temperature, pressure and flow in real time. All metal‑contact surfaces are fabricated from corrosion‑resistant stainless steel (AISI 316L) to withstand the high‑temperature oil (up to 260 °C). The PLC interfaces with standard SCADA platforms via Modbus‑TCP, allowing plant engineers to set ramp‑up curves, alarm thresholds and energy‑saving modes from a single dashboard.
Typical Specifications (customizable per order)
| Parameter | Standard Range | Notes |
|---|---|---|
| Heating Capacity | 500 kW – 4 MW | Scalable modules; additive design |
| Operating Temperature | 120 °C – 260 °C | Compatible with standard synthetic‑oil formulations |
| Pump Flow Rate | 0.8 – 5 m³/h per module | Variable‑speed drives for energy optimisation |
| Control Interface | PLC + Modbus‑TCP | Seamless integration with existing DCS/SCADA |
| Safety Features | Over‑temp, low‑oil, pressure relief | Meets IEC 60204‑1 and EN 60204‑1 standards |
Competitive Advantages
- Energy Efficiency: Heat‑exchanger design reduces oil temperature swing by up to 15 %, translating into lower electricity consumption.
- Modular Expansion: Units can be added in 500 kW increments without major plant shutdown, supporting capacity growth.
- Robust Materials: All wetted parts are stainless‑steel and compatible with high‑temperature synthetic oils, extending service life beyond 15 years.
- Predictive Maintenance: Built‑in vibration and flow sensors feed data to AI‑based analytics platforms, enabling condition‑based service planning.
- Global Compliance: Certified to ISO 9001, ISO 14001 and IEC 61800‑5‑1 for variable‑speed drives, facilitating installation in regulated markets.
Application Scenarios
The heating system is routinely deployed in three core sections of a synthetic‑fiber plant:
- Melt‑Spinning Lines: Provides stable melt temperature (260 °C ± 2 °C) for polyester and nylon filaments, reducing breakage rates.
- Drawing & Texturizing Units: Precise thermal control enables consistent filament draw ratios, improving tensile strength.
- Finishing & Heat‑Setting Tunnels: Uniform heat distribution eliminates hot spots, ensuring dimensional stability of the final textile.
Customers have reported up to 12 % yield improvement after replacing legacy steam‑based heating with our fluid‑based solution, thanks to tighter temperature control and faster ramp‑up times.
FAQ
What is the minimum order quantity (MOQ) for a custom‑sized system?
We can supply a single 500 kW module as a stand‑alone unit; larger capacities are built from identical modules, so the MOQ is effectively one modular block.
Can the system be adapted to different thermal oil formulations?
Yes. All wetted components are compatible with standard synthetic heat‑transfer oils up to 260 °C. For specialty fluids, we perform a material‑compatibility review during engineering.
What is the typical lead time from order to shipment?
Standard configurations ship within 15–45 days after order confirmation, depending on the selected capacity and any optional control‑system integration.
Is there a warranty or after‑sales support package?
All units carry a 24‑month comprehensive warranty covering parts, pumps and control electronics. Extended service contracts and on‑site commissioning are available on request.
Get Started Today
If you are ready to upgrade your plant’s heating infrastructure, contact our engineering team for a free feasibility study. We will assess your process requirements, propose a modular layout, and provide a detailed quotation within 5 business days.
